Product Details

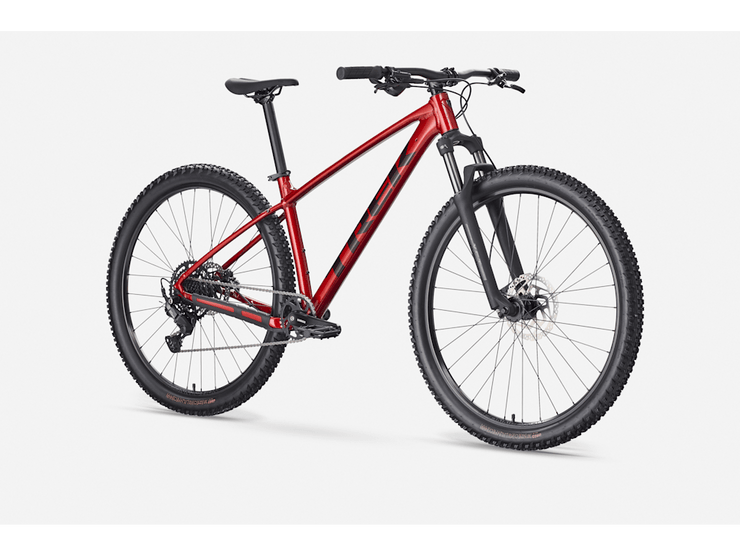

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
*Please note – spec applies to all sizes unless listed separately
- *Frame
-
Size: XS
Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkewSize: S , M , ML , L , XL , XXL
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew - *Fork
-
Size: XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travelSize: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travelSize: M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel
- Hub front
-
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
- Skewer front
-
Trek Thru-Skew
- Hub rear
-
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
- Skewer rear
- Rim
-
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
- Spokes
-
14 g stainless steel, black
- *Tyre
-
Size: XS , S
Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40"Size: M , ML , L , XL , XXL
Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"
- Shifter
-
Shimano U4000, 9-speed
- Rear derailleur
-
Shimano CUES U4000
- *Crank
-
Size: XS , S , M , ML
Shimano CUES U4001, 32T, 52mm chain line, 170 mm lengthSize: L , XL , XXL
Shimano CUES U4001, 32T, 52mm chain line, 175mm length - Bottom bracket
-
Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
- Cassette
-
Shimano LINKGLIDE LG300, 11-46, 9-speed
- Chain
-
Shimano LG500
- Pedal
- Saddle
- *Seatpost
-
Size: XS , S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm lengthSize: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length - *Handlebar
-
Size: XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm widthSize: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm widthSize: M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width - Grips
- *Stem
-
Size: XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length - Head set
-
Semi-integrated, 1-1/8"
- Brake
-
Shimano MT200 hydraulic disc
- *Brake rotor
-
Size: XS , S , M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 160 mmSize: M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 180 mm - Brake Set
-
Shimano MT200 hydraulic disc
- Weight
- M - 15.10 kg / 33.29 lbs
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
