Cube

Aim

£579.00

Tax included.

Reliable Shimano gears, trail-taming suspension forks and great handling for adventurous days out – that's our Aim.

At CUBE we believe the bike should just get out of the way and let you enjoy the ride. That's why, with the brand-new Aim, we started with a Suntour 100mm suspension fork and 2.25in tyres - for grip, comfort and control. Shimano's 2x8-speed gears give you the range you need at the push of a button, and powerful flat mount disc brakes bring you safely to a stop. And SizeSplit, with a wider range of sizes than ever before, means every rider can find their ideal Aim.

Completely revised for 2022, the brand-new Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim that fits perfectly.

Specification:

Frame:	Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Fork:	SR Suntour XCE, 100mm
Headset:	CUBE FPH863, Semi-Integrated
Stem:	CUBE Performance Stem, 31.8mm
Bars:	CUBE Rise Trail Bar, 680mm
Front Brake:	Tektro MD-280/U310R, Mech. Disc Brake (160/160)
Rear Brake:	Tektro MD-280/U310R, Mech. Disc Brake (160/160)
Front Mech:	Shimano FD-TY710-2-TS3, Topswing, 31.8mm Clamp
Rear Mech:	Shimano RD-TX800, 8-Speed
Shifters:	Shimano SL-M315, Rapidfire-Plus
Speed:	16
Rims:	CUBE ZX20, 32H, Disc
Front Hub:	CUBE Alloy Light, QR, 6-Bolt
Rear Hub:	CUBE Alloy Light, QR, 6-Bolt
Front Tyre:	CUBE IMPAC Smartpac, 2.25
Rear Tyre:	CUBE IMPAC Smartpac, 2.25
Seat Post:	CUBE Performance Post, 27.2mm
Saddle:	Natural Fit Venec Lite
Chainset:	Shimano FC-M315, 36x22T, 170mm
Chain:	KMC Z8.3
Cassette:	Shimano CS-HG200, 12-32T
Pedals:	CUBE PP MTB
Weight:	14.8kg

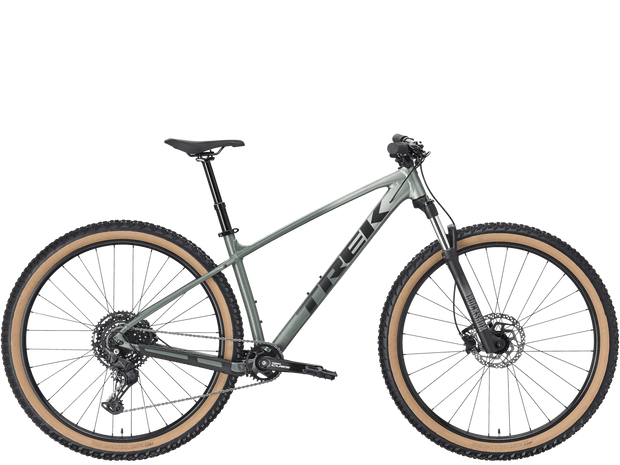

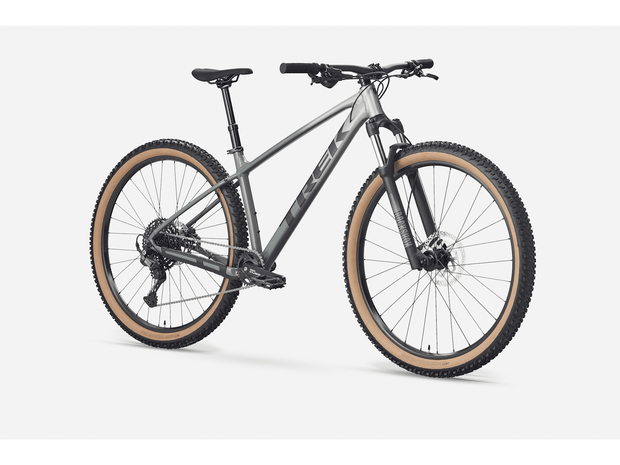

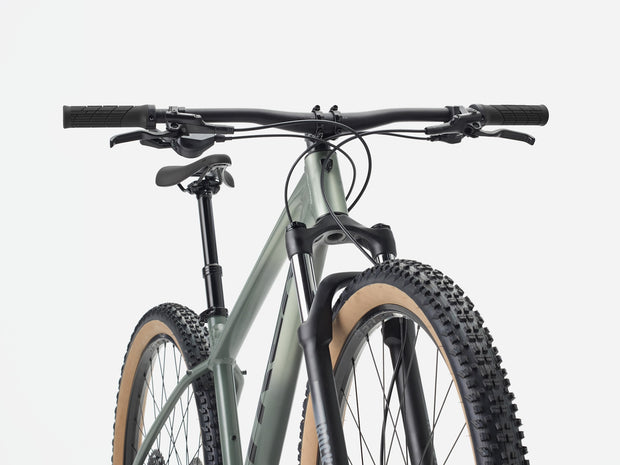

Trek

Marlin 6 Gen 3

£760.00

Tax included.

The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.

Specification

Frame	Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Frame	Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
*Fork	Size: XS , S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
	Size: XS , S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5'' wheel, 100 mm QR, 100 mm travel
	Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
	Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29'' wheel, 100 mm QR, 100 mm travel

Hub front	Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew
Hub rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear	Bontrager Switch thru axle
Rim	Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Spokes	14 g stainless steel
*Tyre	Size: XS , S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40"
*Tyre	Size: M , ML , L , XL , XXL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40"

Shifter	Shimano Deore M4100, 10 speed
Rear derailleur	Shimano Deore M5120, long cage
Crank	Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length
Bottom bracket	VP BC73, 73 mm, threaded cartridge
Cassette	Shimano Deore M4100, 11-46, 10-speed
Chain	KMC X10, 10-speed
Pedal	VP-536 nylon platform

Saddle	Bontrager Arvada, steel rails, 138 mm width
*Seatpost	Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
*Seatpost	Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar	Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
	Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
	Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips	Bontrager XR Endurance Comp, lock-on
*Stem	Size: XS , S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 35 mm length
	Size: M , ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
	Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
	Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set	Semi-integrated, 1-1/8"
Brake	Tektro HD-M275 hydraulic disc, 180 mm rotor
Brake Set	Tektro HD-M275 hydraulic disc, 160 mm rotor

Weight	M - 14.80 kg / 32.63 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs).

Trek

Marlin 4 Gen 2

£525.00

Tax included.

Marlin 4 is the perfect gateway to trail riding. It's ideal for new riders who want a mountain bike with knobby tyres, that can double as a rugged commuter. Disc brakes, front suspension, 21 speeds and mounts for a rack and mudguards make this a great bike for new trail riders and campus commuters alike.

Specification

*Frame	Size: XS , S Alpha Silver Aluminium, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5 mm QR
*Frame	Size: M , ML , L , XL , XXL Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
*Fork	Size: XS SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
	Size: S SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
	Size: M , ML , L , XL , XXL SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Max compatible fork travel	100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)

Hub front	Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Hub rear	Formula DC-31, alloy, 6-bolt, 6/7/8-speed freewheel, 135x5 mm QR
Rim	Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
*Tyre	Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20"
	Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20"
	Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.00"
Max tyre size	Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer

Shifter	Shimano Altus EF500, 7-speed
Front derailleur	Shimano Tourney TY300, 34.9 mm clamp, down swing, down pull
Rear derailleur	Shimano Tourney TY300
*Crank	Size: XS , S , M Shimano Tourney TY301, 42/34/24, 170 mm length
*Crank	Size: ML , L , XL , XXL Shimano Tourney TY301, 42/34/24, 175 mm length
*Bottom bracket	Size: XS , S , M , ML , L , XL , XXL VP BC73, 73 mm, threaded cartridge
*Bottom bracket	Size: XS , S , M , ML , L , XL , XXL Sealed cartridge, 73mm
Cassette	Shimano TZ500, 14-28, 7--speed
Chain	KMC Z7, 7-speed
Pedal	VP-536 nylon platform
Max. chainring size	1x/2x: 34T, 3x: 42T

Saddle	Bontrager Arvada, steel rails, 138 mm width
*Seatpost	Size: XS , S Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
	Size: M Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length
	Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar	Size: XS , S Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
*Handlebar	Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
*Grips	Size: XS , S , M , ML , L , XL , XXL Bontrager XR Endurance Comp
*Grips	Size: XS , S , M , ML , L , XL , XXL Bontrager XR Endurance Comp, lock-on
*Stem	Size: XS Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
	Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
	Size: M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
	Size: ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
	Size: XL , XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Head set	Semi-integrated, 1-1/8"
*Brake	Size: XS , S , M , ML , L , XL , XXL Tektro MD-M280 mechanical disc, 160 mm rotor
*Brake	Size: XS , S , M , ML , L , XL , XXL Tektro MD-M281 mechanical disc, 160 mm rotor

Cube

Aim Pro

£649.00

Tax included.

Completely revised for 2022, the brand-new Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim that fits perfectly.

Specification:

Frame:	Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Fork:	SR Suntour XCT, 100mm
Headset:	CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
Stem:	CUBE Performance Stem Pro, 31.8mm
Bars:	CUBE Rise Trail Bar, 680mm
Front Brake:	Tektro HD-M275 / TKD-150, Hydr. Disc Brake (160/160)
Rear Brake:	Tektro HD-M275 / TKD-150, Hydr. Disc Brake (160/160)
Front Mech:	Shimano FD-M315, Top Swing, 31.8mm Clamp
Rear Mech:	Shimano RD-M360, 8-Speed
Shifters:	Shimano SL-M315, Rapidfire-Plus
Speed:	16
Rims:	CUBE ZX20, 32H, Disc
Front Hub:	CUBE Alloy Light, QR, 6-Bolt
Rear Hub:	CUBE Alloy Light, QR, 6-Bolt
Front Tyre:	CUBE IMPAC Smartpac, 2.25
Rear Tyre:	CUBE IMPAC Smartpac, 2.25
Seat Post:	CUBE Performance Post, 27.2mm
Saddle:	Natural Fit Venec Lite
Chainset:	Shimano FC-M315, 36x22T, 170mm
Chain:	KMC Z8.3
Cassette:	Shimano CS-HG31, 11-34T
Pedals:	CUBE PP MTB
Weight:	14.6kg

Cube

Aim Race

£699.00

Tax included.

Completely revised for 2022, the brand-new Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier.

Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres.

Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim that fits perfectly.

Specification:

Frame:	Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Fork:	SR Suntour XCM Disc, 100mm, Lockout
Headset:	CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
Stem:	CUBE Performance Stem Pro, 31.8mm
Bars:	CUBE Rise Trail Bar, 680mm
Front Brake:	Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Rear Brake:	Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Front Mech:	Shimano FD-M315, Top Swing, 31.8mm Clamp
Rear Mech:	Shimano RD-M360, 8-Speed
Shifters:	Shimano SL-M315, Rapidfire-Plus
Speed:	16
Rims:	CUBE ZX20, 32H, Disc
Front Hub:	Shimano HB-TX505, QR, Centerlock
Rear Hub:	Shimano FH-TX505, QR, Centerlock
Front Tyre:	Schwalbe Smart Sam, Active, 2.25
Rear Tyre:	Schwalbe Smart Sam, Active, 2.25
Seat Post:	CUBE Performance Post, 27.2mm
Saddle:	Natural Fit Venec Lite
Chainset:	Shimano FC-M315, 36x22T, 170mm
Chain:	KMC Z8.3
Cassette:	Shimano CS-HG31, 11-34T
Pedals:	CUBE PP MTB
Weight:	14.3kg

Orbea

MX 30

£719.00 £575.00 Save 20%

Tax included.

A versatile off-road companion, the Orbea MX 30 mountain bike features a light but strong alloy frame and front suspension for damping bumps to smooth out your ride. The perfect bike for some off-road cross-country explorations, or undulating trails, the hardtail ensures great power transfer through the rear wheel without rear suspension to absorb any of your efforts when riding uphill. The frame has rear rack mounting points, so you could easily carry luggage for longer distance adventures, or turn it into a canal towpath commuter.

With Shimano components, you get unrivalled reliability, and the Deore M4100 series gearset shifts seamlessly. There's a huge range of gearing thanks to the 10-speed cassette and double chainset, so you can tackle any gradient with confidence. Stopping is made easy by the powerful hydraulic disc brakes, which are perfect for off-road conditions too. Rolling on a set of size-specific Orbea Black Rock wheels, the bike handles consistently whether you ride a Small or Medium with 27.5" wheels or any of the larger sized frames with 29" wheels.

Specification:

Frame	Orbea MX AL6061 Alloy, Orbea tube shapes, internal cable routing, rear rack mounting points, Quick Release drop-outs
Fork	SR Suntour XCM RL-Coil 100mm quick-release drop-outs
Rear Shock	N/A
Headset	VP-Z104PD 1-1/8" Semi-Cartridge
Stem	Orbea Alloy 31.8mm interface 7º
Handlebar	Orbea Flat, 31.8mm, 720mm width
Front Brake	Shimano MT200 hydraulic disc
Rear Brake	Shimano MT200 hydraulic disc
Brake Levers	Shimano MT200 hydraulic disc
Front Derailleur	Shimano Deore M6025 band-on 31.8mm
Rear Derailleur	Shimano Deore M4120 SGS Shadow 10-speed
Shift Levers	Shimano Deore M4100 10-speed
Chain	KMC X10, 10-speed
Cassette	Shimano Deore M4100 11-42t 10-speed
Crankset	Orbea Alloy forged 26x36t
Front Wheel	Orbea Black Rock 23c Disc clincher (size specific)
Rear Wheel	Orbea Black Rock 23c Disc clincher (size specific)
Front Tyre	Kenda K1153 2.35" 30TPI, clincher
Rear Tyre	Kenda K1153 2.35" 30TPI, clincher
Saddle	Selle Royal 2058 DRN
Seatpost	Orbea Alloy, 27.2, Offset 0

Trek

Marlin 6

£760.00

Tax included.

The Trek Marlin 6 is a cross country mountain bike built to give you an efficient off-road ride with a suspension fork that locks out, and smoother-shifting 1x10 drive train. It's made for mountain biking, but it's also equipped with features like rack and kickstand mounts that make it a great choice for adventurous daily commutes.

The Marlin 6 features an aluminium frame with internal shift cable and brake hose routing to protect your cables and add to the bike's sleek look, an efficient 1x10 drive train plus a suspension fork with a lever that lets you easily lock the suspension so you don't waste energy on smooth terrain. Extra-strong double-walled rims and powerful hydraulic disc brakes give you durability and stopping power for your most rugged adventures on the trail, in town, and everywhere in between.

This versatile hardtail delivers a great ride for all your adventures, but also doubles perfectly as a commuter bike so you can get the best of both worlds!

Specification:

Frame:Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
Fork:SR Suntour XCT 30, coil spring, preload, hydraulic lockout
Number of Gears:10
Gear Shifters:Shimano Deore M4100 10 speed
Chainset:Prowheel C10 alloy
Chainrings:30 tooth
Rear Cassette:Shimano Deore M4100, 11-46, 10-speed
Chain:KMC X10, 10-speed
Front Derailleur:NA
Rear Derailleur:Shimano Deore M4100 10 speed
Bottom Bracket:VP BC73, 73 mm, threaded cartridge
Pedals:VP-536 nylon platform
Rims:Bontrager Connection 32-hole double-walled
Front Hub:Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Rear Hub:Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Front Tyre:Bontrager XR2 Comp, wire bead, 30 tpi, 29/27.5x2.20"
Rear Tyre:Bontrager XR2 Comp, wire bead, 30 tpi, 29/27.5x2.20"
Brakes:Tektro HD-M275/6 hydraulic disc (short-reach lever on size S & XS)
Handlebars:Bontrager alloy, 31.8mm, 5mm rise
Handlebar Grips:Bontrager XR Endurance Comp
Headset:Semi-integrated, 1-1/8"
Stem:Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree
Saddle:Bontrager Arvada, steel rails
Seatpost:Bontrager alloy, 31.6 mm, 12 mm offset
Accessories:N/A
Weight:M - 14.11 kg / 31.11 lbs

Trek

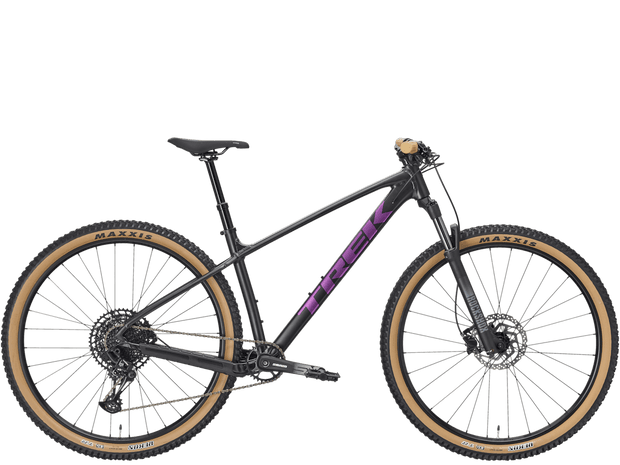

Marlin 7

£825.00

Tax included.

The Trek Marlin 7 is where race-worthy mountain bikes begin. The smooth, lightweight RockShox fork and upgraded parts make this model the best choice for new riders who want a fast, cross-country hardtail that will hold its own against our higher-end race bikes.

The Marlin 7 features a light frame with internal shift cable and brake hose cable routing, a smoother-feeling RockShox Judy fork with a lockout. Don't worry, with the wide-range 11-46 cassette, you still get all the gears you need for clawing up climbs and blazing down descents. This is the best choice for new mountain bikers who know they want a serious bike for their money that’s fully capable of taking on off-road marathon rides and XC races!

Specification:

Frame	Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
Fork	RockShox Judy, coil spring, preload, TurnKey lockout, 100mm QR, 100mm travel
Head Set	Semi-integrated, 1-1/8
Stem	Bontrager alloy, 31.8mm, Blendr compatible, 7 degree
Handle Bars	Bontrager alloy, 31.8mm, 5mm rise
Tape/Grips	Bontrager XR Trail Comp, nylon lock-on
Brakes	Shimano MT200 hydraulic disc
Tyres	Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20
Rear Derailleur	Shimano Deore M5120, long cage
Shift Levers	Shimano Deore M4100, 10 speed
Cassette	Shimano Deore M4100, 11-46, 10 speed
CrankSet	FSA Alpha Drive, 28T steel ring, Boost
Bottom Bracket	FSA, 73mm, threaded cartridge
Pedals	VP-536 nylon platform
Front Tyre	Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20
Rear Tyre	Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20
Saddle	Bontrager Arvada, steel rails, 138mm width
Seat Post	Bontrager alloy, 31.6mm, 12mm offset

Cube

Aim Ex

£749.00

Tax included.

Completely revised for 2022, the brand-new Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier.

Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres.

Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim that fits perfectly.

Specification:

Frame:	Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Fork:	SR Suntour XCM Disc, 100mm, Remote Lockout
Headset:	CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
Stem:	CUBE Performance Stem Pro, 31.8mm
Bars:	CUBE Rise Trail Bar, 680mm
Front Brake:	Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Rear Brake:	Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Rear Mech:	Shimano Deore RD-M5120-SGS, 10-Speed
Shifters:	Shimano Deore SL-M4100, Rapidfire-Plus
Speed:	10
Rims:	CUBE ZX20, 32H, Disc
Front Hub:	Shimano HB-TX505, QR, Centerlock
Rear Hub:	Shimano FH-TX505, QR, Centerlock
Front Tyre:	Schwalbe Smart Sam, Active, 2.25
Rear Tyre:	Schwalbe Smart Sam, Active, 2.25
Seat Post:	CUBE Performance Post, 27.2mm
Saddle:	Natural Fit Venec Lite
Chainset:	ACID MTB Alloy 32T
Chain:	KMC X10
Cassette:	Sunrace CSM52, 11-46T
Pedals:	CUBE PP MTB
Weight:	14kg

Cube

Aim SL

£849.00

Tax included.

Completely revised for 2022, the brand-new Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so however tall you are there'll be an Aim that fits perfectly.

You know the saying, 'power is nothing without control'? It's the reason that the brand-new Aim SL features 100mm of smooth, RockShox-flavoured bump-swallowing travel - with lockout. Combined with the strong Shimano hydraulic disc brakes, tapered head tube and grippy 2.25in tyres, it's your guarantee of always being in full control, wherever your curiosity takes you. Wide-ranging Shimano 2x9 gears put the ideal ratio for any trail at your fingertips, and the frame's internal cable routing even allows for a future dropper post upgrade. What's holding you back?

Specification:

Frame:	Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Fork:	RockShox Judy Silver TK Coil, 100mm, Lockout
Headset:	CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
Stem:	CUBE Performance Stem Pro, 31.8mm
Bars:	CUBE Rise Trail Bar, 680mm
Front Brake:	Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Rear Brake:	Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Front Mech:	Shimano FD-M2020, Top Swing, 31.8mm Clamp
Rear Mech:	Shimano RD-M3100-SGS, 9-Speed
Shifters:	Shimano SL-M2010-9R, Rapidfire-Plus
Speed:	18
Rims:	CUBE ZX20, 32H, Disc
Front Hub:	Shimano HB-TX505, QR, Centerlock
Rear Hub:	Shimano FH-TX505, QR, Centerlock
Front Tyre:	Schwalbe Smart Sam, Active, 2.25
Rear Tyre:	Schwalbe Smart Sam, Active, 2.25
Seat Post:	CUBE Performance Post, 27.2mm
Saddle:	Natural Fit Venec Lite
Chainset:	Shimano FC-MT101, 36x22T
Chain:	KMC X9
Cassette:	Shimano CS-HG201, 11-36T
Pedals:	CUBE PP MTB
Weight:	13.8kg

Ridgeback

Terrain 1

£449.99 £399.99 Save 11%

Tax included.

Our entry-level mountain bike, the Ridgeback Terrain 1 is ready to head off-road and take on the trails at your local forest.

The 27.5-inch wheelset and 2.1-inch tyres combine to give a flickable feel when on the trails, with plenty of grip over loose surfaces.

Built to last, the aluminium frame is backed by our limited lifetime warranty and features a 67-degree head angle for stable handling at speed.

Powerful v-brakes give predictable stopping and 21 wide-ranging gears give this true mountain bike adaptability for steep climbs and fast descents.

Trek

Slash 8

£4,000.00

Tax included.

The Slash 8 is an enduro mountain bike that rolls on fast 29er wheels and floats on plush RockShox suspension with SRAM's 12-speed GX Eagle handling drivetrain duties. An aluminium frame with fresh new tech and tough alloy wheels push this bike into the sweet spot for all-around rippers.

You want a big bike with big wheels to roll over big things and send big hits. You might enter some enduro races, but you mostly just want to rail sketchy descents faster than anyone else in your crew.

An aluminium frame built for harsh riding with a threaded bottom bracket, dual downtube guards, Knock Block 2.0 and 160 mm of travel with a RockShox Super Deluxe Select+ shock for long descents and 170 mm RockShox ZEB Select fork. Plus, a SRAM GX Eagle drivetrain with an extra-low 52-tooth gear, Code R 4-piston brakes and completely tubeless Line Comp 30 wheels.

Slash 8 puts serious enduro performance within reach with smart choices on spec that won't empty your wallet. The aluminium frame, burly suspension and 1x12 Eagle drivetrain makes for a ride that's equally at home on the race course and on a big, out-in-the-wild session.

Specification

Frame	Alpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, Control Freak internal routing, down tube guard, shuttle guard, threaded BB, ISCG 05, 34.9 mm seat tube, magnesium rocker link, Mino Link, ABP, Boost148, 160 mm travel
Fork	RockShox ZEB Select, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 170 mm travel
Shock	RockShox Super Deluxe Select+ RT, 230 mm x 62.5 mm
Max compatible fork travel	180 mm (596 mm axle-to-crown)

Skewer rear	Bontrager Switch thru-axle, removable lever
Max tyre size	Frame: 29x2.50" Fork: See manufacturer

Shifter	SRAM GX Eagle, 12-speed
Rear derailleur	SRAM GX Eagle
Crank	SRAM X1 Eagle, DUB MTB Wide, 30T steel ring, 55 mm chainline, 170 mm length
Bottom bracket	SRAM DUB MTB Wide, 73 m, BSA threaded
Cassette	SRAM Eagle XG-1275, 10-52, 12-speed
Chain	SRAM GX Eagle, 12-speed
Max. chainring size	Max: 34T, Min 28T

Saddle	Bontrager Arvada, hollow chromoly rails, 138 mm width
*Seatpost	Size: S TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm
	Size: M , ML TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
	Size: L , XL TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
Handlebar	Bontrager Line, alloy, 35 mm, 27.5 mm rise, 820 mm width
Grips	Bontrager XR Trail Pro, alloy lock-on
Stem	Bontrager Elite, 35 mm, 0-degree, 35 mm length
Brake	SRAM Code R 4-piston hydraulic disc
*Brake rotor	Size: S , M , ML , L , XL SRAM CenterLine, 6-bolt, round edge, 180 mm
*Brake rotor	Size: S , M , ML , L , XL SRAM CenterLine, 6-bolt, round edge, 200 mm
Rotor size	Max brake rotor sizes: Front see fork manufacturer, rear 200 mm

Weight	M - 15.50 kg / 34.18 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Cube

Acid 240 Disc 2023

£579.00

Tax included.

This is the bike that all youngsters are going to want – light, strong and equipped with everything they'll need for off-road adventuring with friends and family. Hydraulic disc brakes are powerful and easy to control, with levers specially designed for small hands. The Suntour suspension fork improves comfort and control on rough trails, and the wide-ranging 1x9-speed gears are easy to use and give a range that'll make light work of any hill. Off-road adventures are just a few pedal strokes away...
Built from the same heat-treated 6061 aluminium tubes as our adult bikes, the Acid 240 Disc's frame is every bit as tough as a full-size mountain bike, but with the right weight and proportions for a child. Disc mounts allow the use of these powerful, safe and easy-to-use brakes. There's a bottle mount for mid-ride refreshment and rack mounts, too. The handling is designed to be both fun and confidence-inspiring. And, because we know accidents can happen, we made the gear hanger easily replaceable so that a knock or crash needn't result in an expensive repair.

Specification

Net weight (kg): 12

Fork: SR Suntour SF20 XCT JR, 60mm

Headset: CUBE FPH863, Semi-Integrated

Stem: CUBE Aluminium Lite

Handlebar: CUBE Aluminium Lite, 590mm

Grips: Velo

Rear derailleur: Shimano RD-M310, 7-Speed

Shifters: Shimano SL-RS45, Revoshift

Brake system: Tektro HD-M282, Hydr. Disc Brake (160/160)

Crankset: Samox, 32T, 152mm with Chainguard, Aluminium

Crankset chainring sizes: 32T

Cassette: Sunrace CSM40.7, 11-34T

Number of gears: 7

Chain: KMC HV500

Rims: Aluminium

Front hub: CUBE Aluminium, 28H

Rear hub: CUBE Aluminium, 28H

Tires: CUBE IMPAC Smartpac, 2.1

Pedals: CUBE PP MTB

Saddle: CUBE Kid

Seat post: CUBE Aluminium Lite

Seat post = dropper Yes/No: No

Seat post clamp: CUBE Varioclose, 31.8mm

Bell: ACID

Cube

Aim Ex

£749.00

Tax included.

Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.

Specification

FRAME

Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount

SIZE

Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24")

SUSPENSION

SUSPENSION FORK

SR Suntour XCM Disc, 100mm, Remote Lockout

DRIVETRAIN & BRAKES

BRAKE SYSTEM

Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)

REAR DERAILLEUR

Shimano Deore RD-M5120-SGS, 10-Speed

FRONT DERAILLEUR

Shimano Deore FD-M6025-H, Downswing, 31.8mm Clamp

SHIFTERS

Shimano Deore SL-M5100, Rapidfire-Plus

BOTTOM BRACKET

Samox BB-EB2401, 73mm BSA

CRANKSET

Shimano Deore FC-M4100, 36X26T

CASSETTE

Sunrace CSM52, 11-42T

CHAIN

KMC X10

COCKPIT

HANDLEBAR

CUBE Rise Trail Bar, 680mm

STEM

CUBE Performance Stem Race, 31.8mm

GRIPS

ACID React

HEADSET

CUBE FPH868, Semi-Integrated

WHEELS

FRONT HUB

Shimano HB-TX505, QR, Centerlock

REAR HUB

Shimano FH-TX505, QR, Centerlock

RIMS

CUBE ZX20, 32H, Disc

TYRES

Schwalbe Smart Sam, Active, 2.25

FINISHING KIT

SEAT POST

CUBE Performance Post, 27.2mm

SADDLE

Natural Fit Venec Lite

PEDALS

ACID PP MTB

PRODUCT INFORMATION

WEIGHT

14,3 kg

COLOUR

grey´n´red

ART. NO

601450

PRICE

SRP* 749 GBP

Cube

Aim 2023

£599.00

Tax included.

At CUBE we believe the bike should just get out of the way and let you enjoy the ride. That's why, with the versatile Aim, we started with a 100mm suspension fork and wide, grippy tyres – so you're always comfortable and in control. Shimano 2x8-speed gears give you the range you need at the push of a button, and powerful flat mount disc brakes bring you safely to a stop no matter what the weather's up to. And SizeSplit, with its huge range of sizes, means every rider can find their perfect Aim.

Frame description
Beauty is more than skin deep: the Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.

Specification

Net weight (kg): 14,9

Fork: SR Suntour XCE, 100mm

Headset: CUBE FPH863, Semi-Integrated

Stem: CUBE Performance Stem, 31.8mm

Handlebar: CUBE Rise Trail Bar, 680mm

Grips: ACID React

Rear derailleur: Shimano RD-TX800, 8-Speed

Front derailleur: Shimano FD-M315, Top Swing, 31.8mm Clamp

Shifters: Shimano SL-M315, Rapidfire-Plus

Brake system: Clarks Clout 1, Hydr. Disc Brake PM/FM (160/160)

Crankset: Shimano FC-M315, 36x22T, 170mm

Crankset chainring sizes: 36x22T

Cassette: Shimano CS-HG200, 12-32T

Number of gears: 16

Chain: KMC Z8.3

Rims: CUBE ZX20, 32H, Disc

Front hub: CUBE Alloy Light, QR, 6-Bolt

Rear hub: CUBE Alloy Light, QR, 6-Bolt

Tires: CUBE IMPAC Smartpac, 2.25

Pedals: CUBE PP MTB

Saddle: Natural Fit Venec Lite

Seat post: CUBE Performance Post, 27.2mm

Seat post = dropper Yes/No: No

Seat post clamp: CUBE Varioclose, 31.8mm

Cube

Aim Race 2023

£699.00

Tax included.

The devil is in the details. At CUBE we know that only too well, which is why the Aim Race's 100mm suspension fork features a lockout – so you can reduce bob and bounce when you're riding hard. With grippy tyres, powerful hydraulic disc brakes and the wide range of Shimano's 2x8 gears, you've all you need to build your own adventure. And, with SizeSplit, there's an Aim Race that'll fit you perfectly.

Frame description
Beauty is more than skin deep: the Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.

Specification

Net weight (kg): 14,3

Fork: SR Suntour XCT Disc, 100mm, Lockout

Headset: CUBE FPH868, Semi-Integrated

Stem: CUBE Peformance Stem Race, 31.8mm

Handlebar: CUBE Rise Trail Bar, 680mm

Grips: ACID React

Rear derailleur: Shimano RD-M3020, 8-Speed

Front derailleur: Shimano FD-M315, Top Swing, 31.8mm Clamp

Shifters: Shimano SL-M315, Rapidfire-Plus

Brake system: Clarks Clout 1, Hydr. Disc Brake PM/FM (180/160)

Crankset: Shimano FC-M315, 36x22T, 170mm

Crankset chainring sizes: 36x22T

Cassette: Shimano CS-HG31, 11-34T

Number of gears: 16

Chain: KMC Z8.3

Rims: CUBE ZX20, 32H, Disc

Front hub: Shimano HB-TX505, QR, Centerlock

Rear hub: Shimano FH-TX505, QR, Centerlock

Tires: Schwalbe Smart Sam, Active, 2.25

Pedals: ACID PP MTB

Saddle: Natural Fit Venec Lite

Seat post: CUBE Performance Post, 27.2mm

Seat post = dropper Yes/No: No

Seat post clamp: CUBE Varioclose, 31.8mm

Trek

Marlin 8 Gen 3

£1,230.00

Tax included.

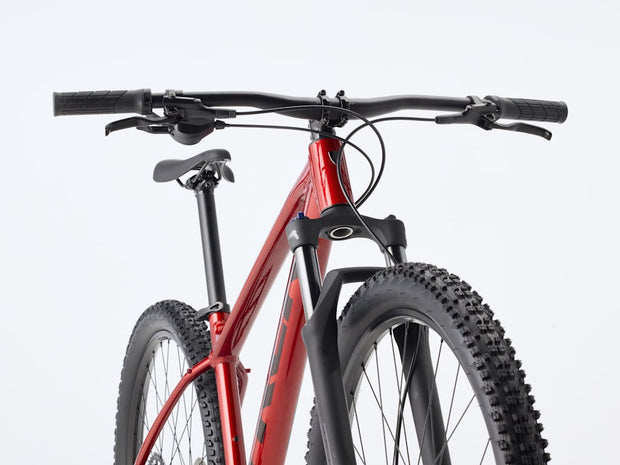

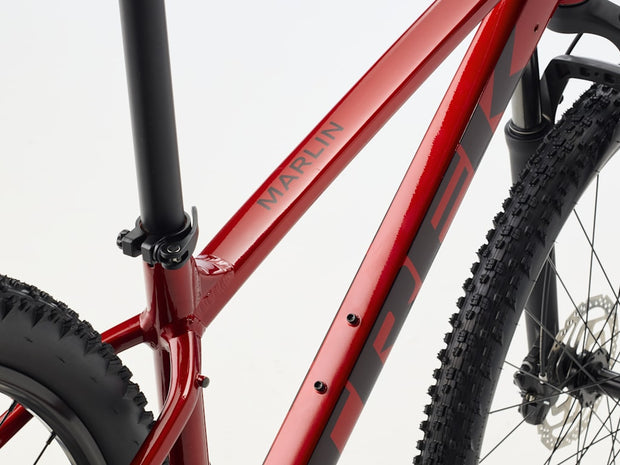

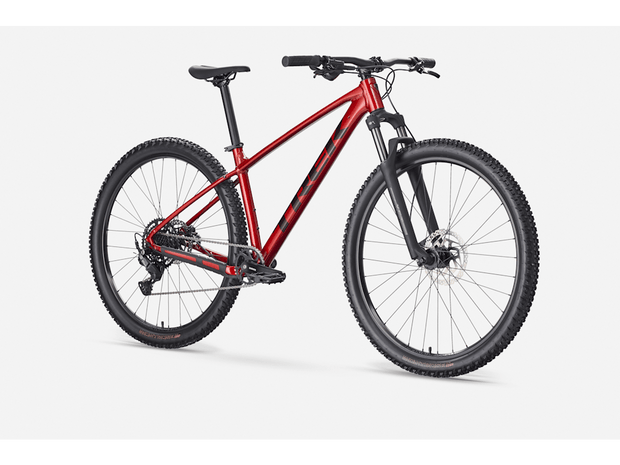

The Marlin 8 is a confidence-boosting trail bike with updated geometry that gives you more control on singletrack without skipping on features for everyday use, like mounts for racks and a kick stand. It's built for years of progress thanks to 12-speed SRAM shifting and an upgraded RockShox air-spring suspension fork.

Specification

*Frame	Size: XXS , XS , S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
*Frame	Size: XXS , XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
*Fork	Size: XXS RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
	Size: XS , S RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
	Size: M , ML , L , XL , XXL RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Hub front	Formula DC-20 LW, alloy, 6-bolt, 5x100 mm QR
Hub rear	Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear	Bontrager Switch thru axle
Rim	Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Spokes	14 g stainless steel
*Tyre	Size: XXS Maxxis Ardent, tubeless, EXO casing, folding bead, 60tpi, 26x2.40"
	Size: XS , S Maxxis Ardent, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.40"
	Size: M , ML , L , XL , XXL Maxxis Ardent, tubeless, EXO casing, folding bead, 60tpi, 29x2.40"

Shifter	SRAM SX Eagle, 12-speed
Rear derailleur	SRAM SX Eagle
*Crank	Size: XXS SRAM SX Eagle, 30T steel ring, 49 mm chainline, 155 mm length
	Size: XS , S , M SRAM SX Eagle, 30T steel ring, 49 mm chainline, 170 mm length
	Size: ML , L , XL , XXL SRAM SX Eagle, 30T steel ring, 49 mm chainline, 175 mm length
Bottom bracket	Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle
Cassette	SRAM PG-1210 Eagle, 11-50, 12-speed
Chain	SRAM SX Eagle, 12-speed

Saddle	Bontrager Arvada, steel rails, 138 mm width
*Seatpost	Size: XXS , XS , S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
	Size: M TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
	Size: ML , L , XL , XXL TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
*Handlebar	Size: XXS , XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
	Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
	Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
*Stem	Size: XXS , XS , S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 35 mm length
	Size: M , ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
	Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
	Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set	Semi-integrated, 1-1/8"
Brake	Shimano MT200 hydraulic disc
*Brake rotor	Size: XXS , XS , S , M , ML , L , XL , XXL Shimano RT26, 6-bolt,160 mm
*Brake rotor	Size: M , ML , L , XL , XXL Shimano RT26, 6-bolt,180 mm
Brake Set	Shimano MT200 hydraulic disc

Weight	M – 14.29 kg/31.51 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs).

Trek

Marlin 7 Gen 3

£950.00

Tax included.

Marlin 7 is your best friend on the trail and wherever else you roll thanks to its confidence-boosting trail geometry. It offers the perfect balance between price and performance with an upgraded RockShox suspension fork that makes quick work of rocks and bumps in your path and precise Shimano Deore shifting.

Specification

Frame	Size: XXS , XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Frame	Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
*Fork	Size: XXS RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
	Size: XS , S RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
	Size: M , ML , L , XL , XXL RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Hub front	Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew
Hub rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear	Bontrager Switch thru axle
Rim	Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Spokes	14 g stainless steel
*Tyre	Size: XXS Bontrager XT3 Comp, wire bead, 30 tpi, 26x2.35"
	Size: XS , S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40"
	Size: M , ML , L , XL , XXL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40"

Shifter	Shimano Deore M4100, 10 speed
Rear derailleur	Shimano Deore M5120, long cage
*Crank	Size: XXS FSA Alpha Drive, 28T steel ring, Boost, 160 mm length
	Size: XS , S , M FSA Alpha Drive, 28T steel ring, Boost, 170 mm length
	Size: ML , L , XL , XXL FSA Alpha Drive, 28T steel ring, Boost, 175 mm length
Bottom bracket	FSA, 73 mm, threaded cartridge, 122.5 mm spindle
Cassette	Shimano Deore M4100, 11-46, 10-speed
Chain	KMC X10, 10-speed

Saddle	Bontrager Arvada, steel rails, 138 mm width
*Seatpost	Size: XXS Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length
	Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
	Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar	Size: XXS , XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
	Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
	Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
*Stem	Size: XXS , XS , S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 35 mm length
	Size: M , ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
	Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
	Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set	Semi-integrated, 1-1/8"
Brake	Shimano MT200 hydraulic disc
*Brake rotor	Size: XXS , XS , S , M , ML , L , XL , XXL Shimano RT26, 6-bolt,160 mm
*Brake rotor	Size: M , ML , L , XL , XXL Shimano RT26, 6-bolt,180 mm
Brake Set	Shimano MT200 hydraulic disc

Weight	M - 14.60 kg / 32.19 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs).

Trek

Marlin 5 Gen 2

£620.00

Tax included.

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

Specification

*Frame	Size: XXS , XS , S Alpha Silver Aluminium, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5 mm QR
*Frame	Size: M , ML , L , XL , XXL Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
*Fork	Size: XXS SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel, 26" wheel
	Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
	Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
	Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Max compatible fork travel	100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)

Hub front	Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Hub rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rim	Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
*Tyre	Size: XXS Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20"
	Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20"
	Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20"
Max tyre size	Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer

Shifter	Shimano Altus M315, 8-speed
Front derailleur	Shimano Altus M315, 34.9 mm clamp, top swing, dual pull
Rear derailleur	Shimano Altus M310
*Crank	Size: XXS Prowheel TM-CY10, 36/22, 160 mm length
	Size: XS , S , M Shimano M315, 36/22, 170 mm length
	Size: ML , L , XL , XXL Shimano M315, 36/22, 175 mm length
Bottom bracket	Sealed cartridge, 73mm
Cassette	Shimano 8-speed, 12-32T
Chain	KMC Z8.3, 8 speed
Max. chainring size	1x/2x: 34T, 3x: 42T

Saddle	Bontrager Arvada, steel rails, 138 mm width
*Seatpost	Size: XXS Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length
	Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
	Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar	Size: XXS , XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
*Handlebar	Size: S , M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
*Stem	Size: XXS Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 35 mm length
	Size: XS Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
	Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
	Size: M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
	Size: ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
	Size: XL , XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Head set	Semi-integrated, 1-1/8"
Brake	Tektro HD-M275 hydraulic disc, 180 mm rotor
Brake Set	Tektro HD-M275 hydraulic disc, 160 mm rotor

Weight	M - 13.97 kg / 30.81 lb
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Specification:

Specification

Specification

Specification:

Specification:

Specification:

Specification:

Specification:

Specification:

Specification:

Specification

Specification

Specification

FRAME

FRAME

SIZE

SUSPENSION

SUSPENSION FORK

DRIVETRAIN & BRAKES

BRAKE SYSTEM

REAR DERAILLEUR

FRONT DERAILLEUR

SHIFTERS

BOTTOM BRACKET

CRANKSET

CASSETTE

CHAIN

COCKPIT

HANDLEBAR

STEM

GRIPS

HEADSET

WHEELS

FRONT HUB

REAR HUB

RIMS

TYRES

FINISHING KIT

SEAT POST

SADDLE

PEDALS

PRODUCT INFORMATION

WEIGHT

COLOUR

ART. NO

PRICE

Specification

Specification

Specification

Specification

Specification

Bike Fitting

Bike Workshop

Cycling Schemes
