Product Details

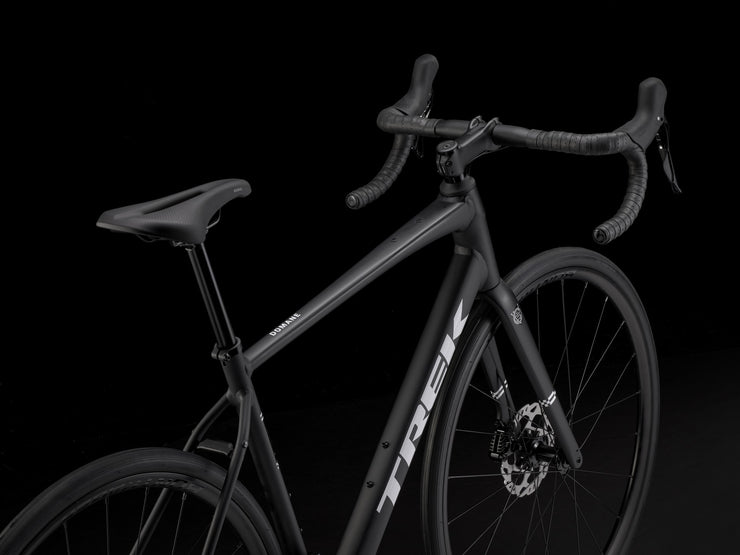

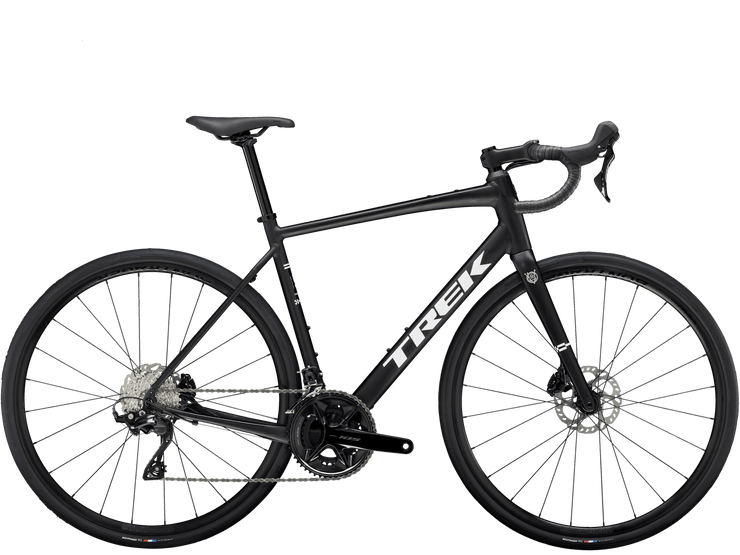

he Domane AL 5 is a speedy and versatile road bike that's a perfect starting point for anyone looking to get into road riding. With an Alpha Aluminium frame, clearance for larger tyres, a 12-speed Shimano 105 drivetrain, top tube mounts and an all-day road comfort geometry – the Domane AL 5 is perfect for casual pedalling, group rides, fast commutes and even venturing beyond tarmac roads to most gravel roads.
Specification

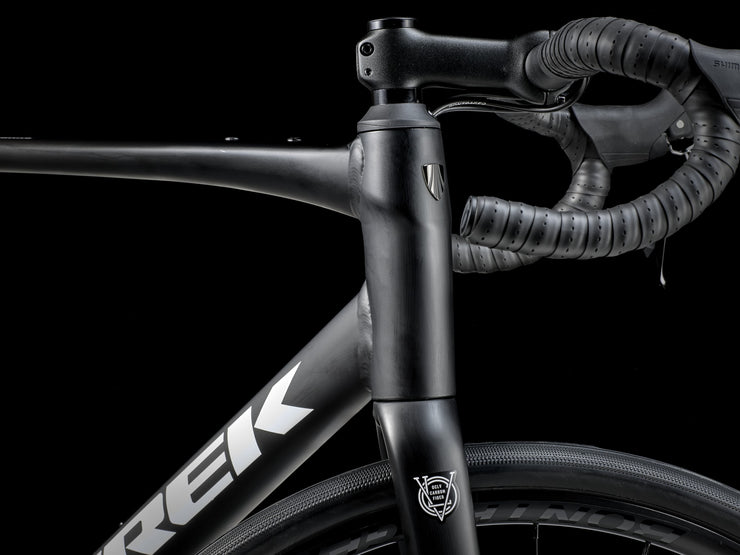

| Frame | 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle |
|---|---|

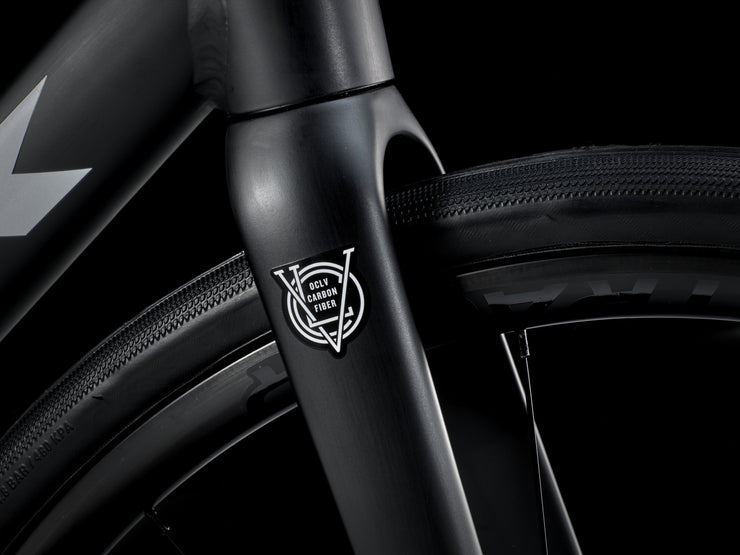

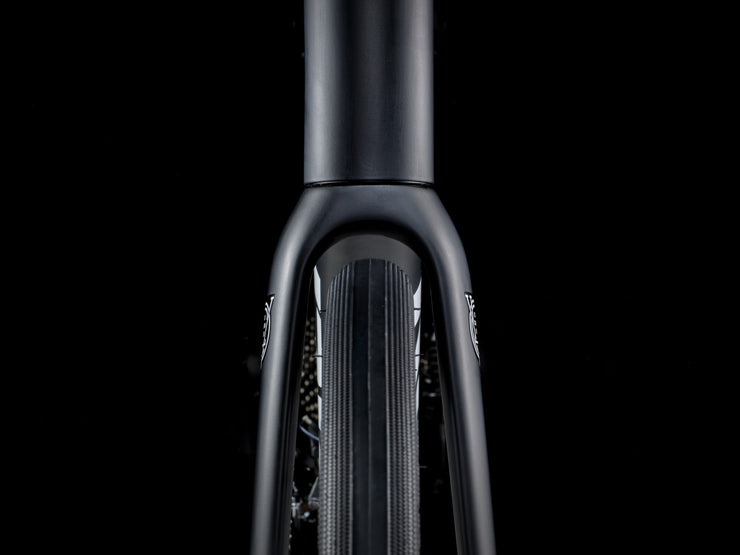

| Fork | Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
Wheels
| Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
|---|---|
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |
| Max tyre size | 38 mm without mudguards, 35 mm with mudguards |

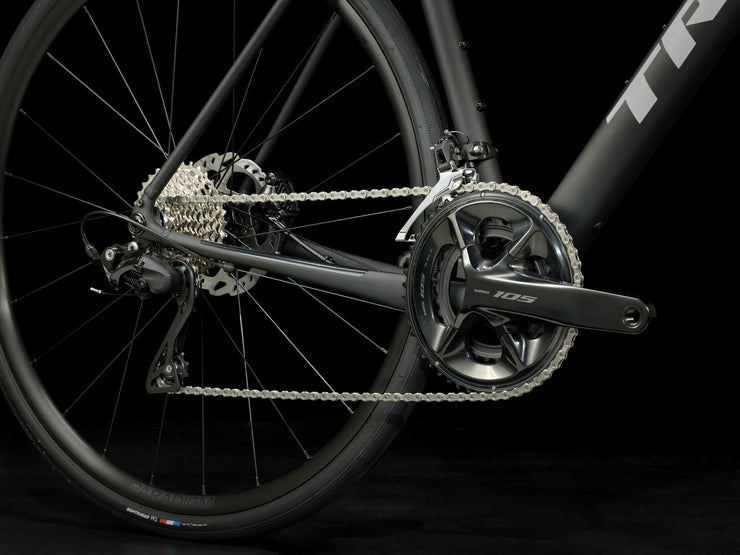

Drivetrain
| Shifter | Shimano 105 R7120, 12-speed |
|---|---|
| Front derailleur | Shimano 105 R7100, 31.8 mm clamp, down swing |
| Rear derailleur | Shimano 105 R7100, 36T max cog |
| *Crank |
Size: 44 Shimano 105 R7100, 50/34, 165 mm length |
|
Size: 49, 52 Shimano 105 R7100, 50/34, 170 mm length |
|
|
Size: 54, 56 Shimano 105 R7100, 50/34, 172.5 mm length |
|
|
Size: 58, 61 Shimano 105 R7100, 50/34, 175 mm length |
|
| *Bottom bracket |
Size: 44, 49, 52, 54, 56, 58, 61 Shimano RS501 BSA |
|
Size: 44, 49, 52, 54, 56, 58, 61 Prowheel PW-BB73+, 68/73 mm, threaded external |
|
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 50T, 2x: 50/34 |
Components
| Saddle | Verse Short, steel rails, 145 mm width |
|---|---|
| *Seatpost |
Size: 44, 49 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length |
|
Size: 52, 54, 56, 58, 61 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length |
|
| *Handlebar |

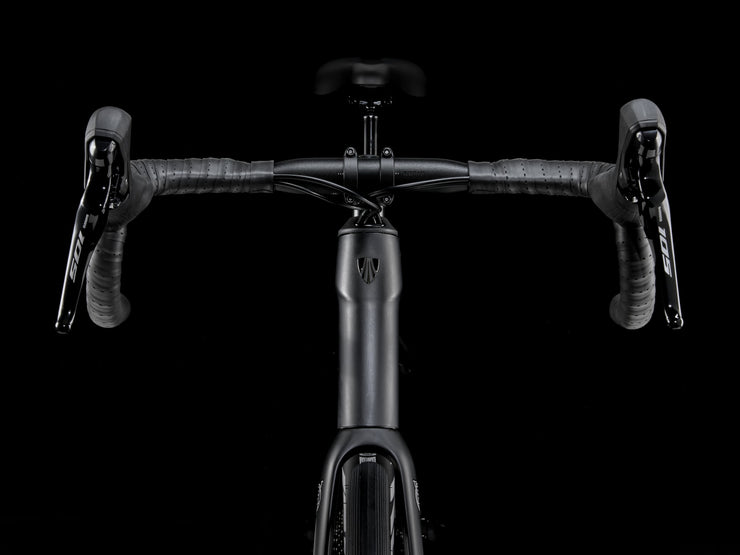

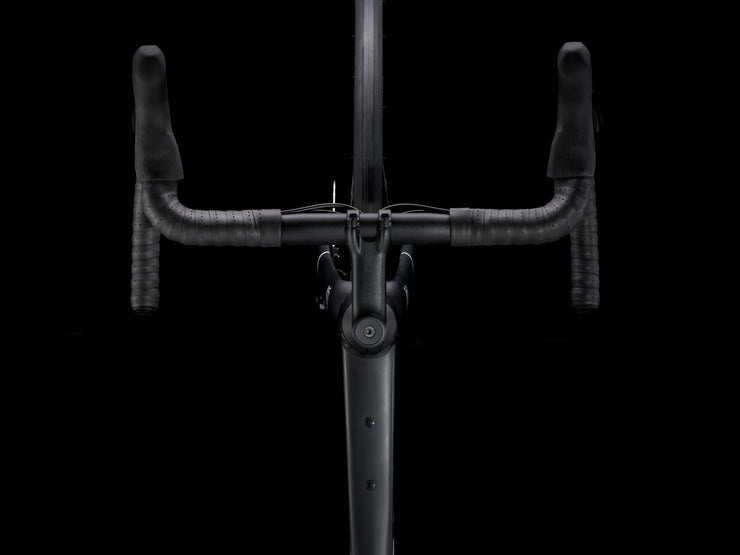

Size: 44, 49 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width |
|
Size: 52 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width |
|
|
Size: 54, 56 Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 42 cm width |
|
|
Size: 58, 61 Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 44 cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem |
Size: 44 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
|
Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
|
Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
|
Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|
|
Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
|
| Brake | Shimano 105 hydraulic disc |

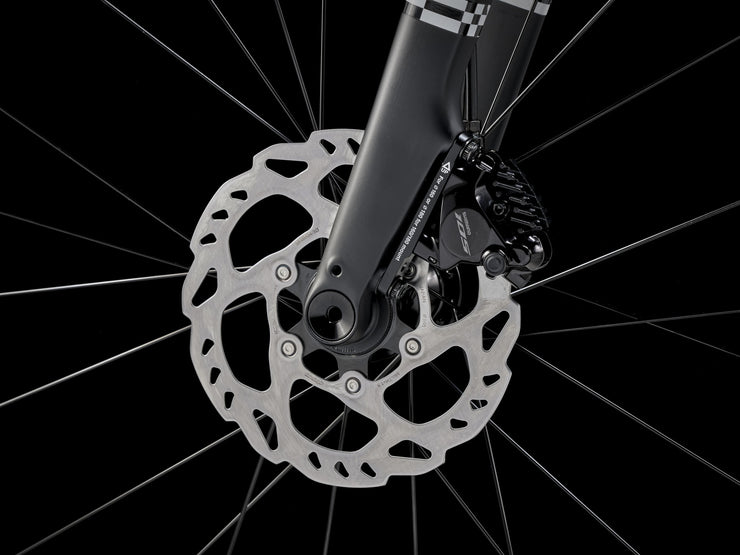

| Brake rotor | Shimano RT70, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
Weight
| Weight | 56 - 9.85 kg/21.72 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
