Product Details

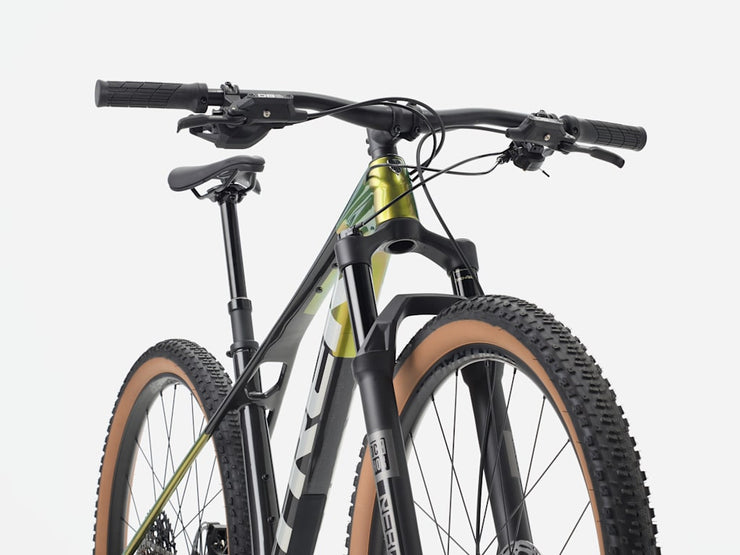

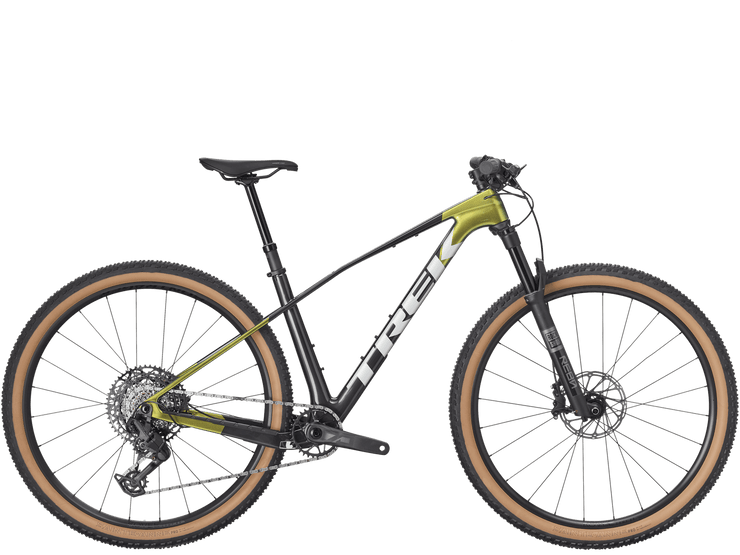

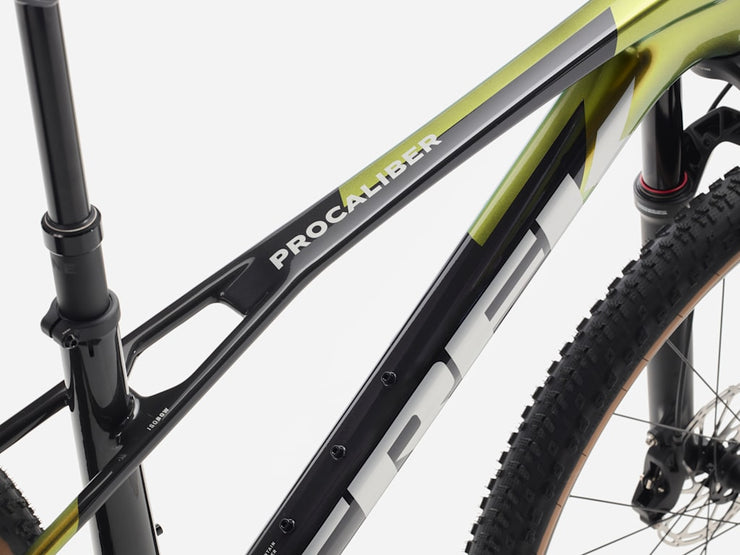

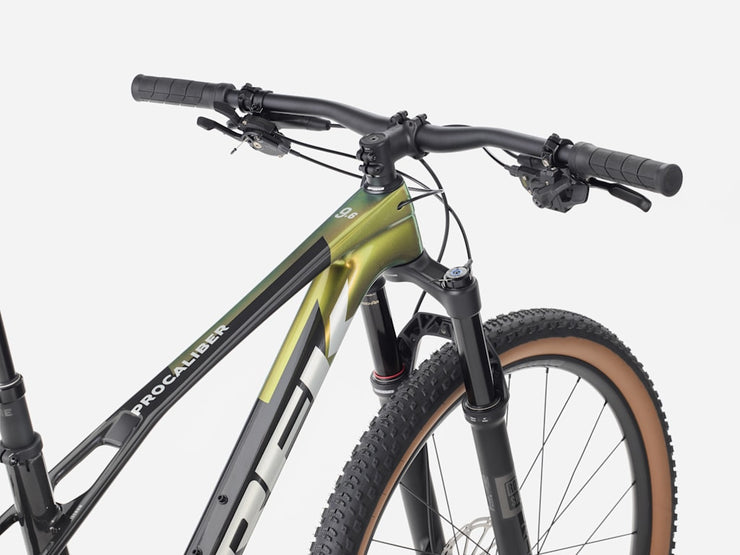

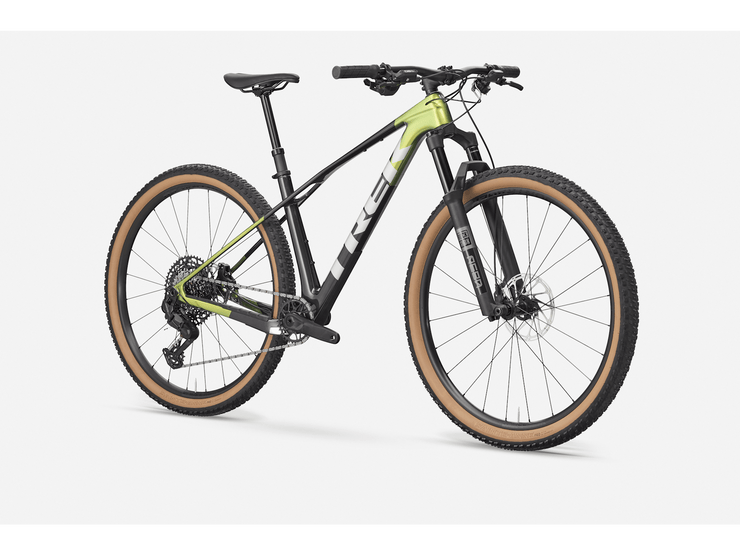

The Procaliber 9.6 is a race-ready cross country hardtail made to fly on the trail. Its lightweight and quick carbon frame delivers a comfortable ride, thanks to IsoBow technology, while a RockShox Reba RL fork soaks up rocks and roots with 120 mm of travel. Shifts stay clean on even your punchiest climbs thanks to a mechanical SRAM Eagle 70 transmission, and SRAM DB 6 4-piston brakes keep you stopping on a dime, when you need it.
- Frame
-
OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post-mount brake, Boost148
- Fork
-
RockShox Reba RL, DebonAir, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
- Suspension part
-
- Wheel front
-
Bontrager Kovee Comp 25, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
- Skewer rear
-
- Tyre
-
Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40"
- Tyre part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tyre size
- Frame: 29x2.40", Fork: See manufacturer
- Shifter
-
SRAM Eagle 70, 12-speed
- Rear derailleur
-
SRAM Eagle 70, T-Type
- *Crank
-
Size: S, M, ML
Sram Eagle 70, T-Type, DUB, 32T, 55 mm chainline, 170 mm lengthSize: XL, L
Sram Eagle 70, T-Type, DUB, 32T, 55 mm chainline, 175 mm length - Bottom bracket
-
SRAM DUB, 92 mm, PressFit
- Cassette
-
SRAM Eagle XS-1270, T-Type,10-52, 12-speed
- Chain
-
SRAM Eagle 70, T-Type, 12-speed
- Max. chainring size
- 1x: 38T
- Saddle
-
- *Seatpost
-
Size: S
Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm lengthSize: L, M, ML
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm lengthSize: XL
Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length - *Handlebar
-
Size: XL, L, M, ML
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width - Grips
-
- *Stem
-
Size: M, ML
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm lengthSize: L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm lengthSize: XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length - Head set
-
FSA IS-2, 1-1/8" top, 1.5" bottom
- Brake rotor
-
SRAM CenterLine, 6-bolt, round-edge, 160 mm
- Rotor size
- Max brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer
- Weight
- M - 11.83 kg / 26.09 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
