Product Details

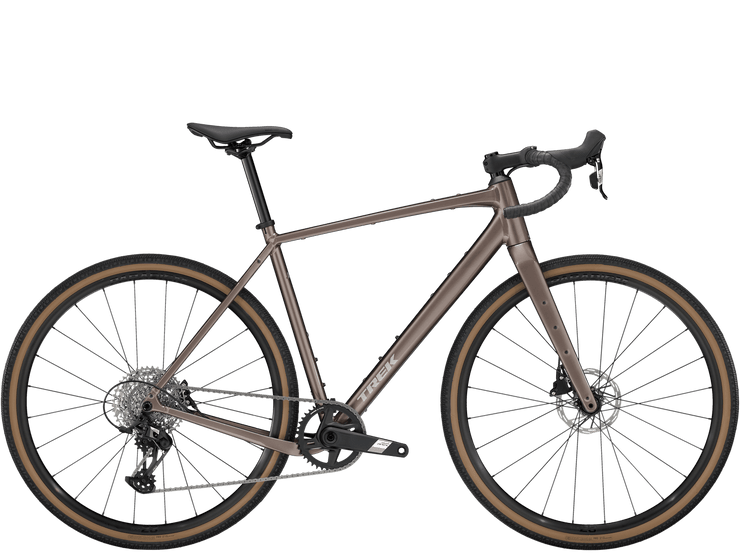

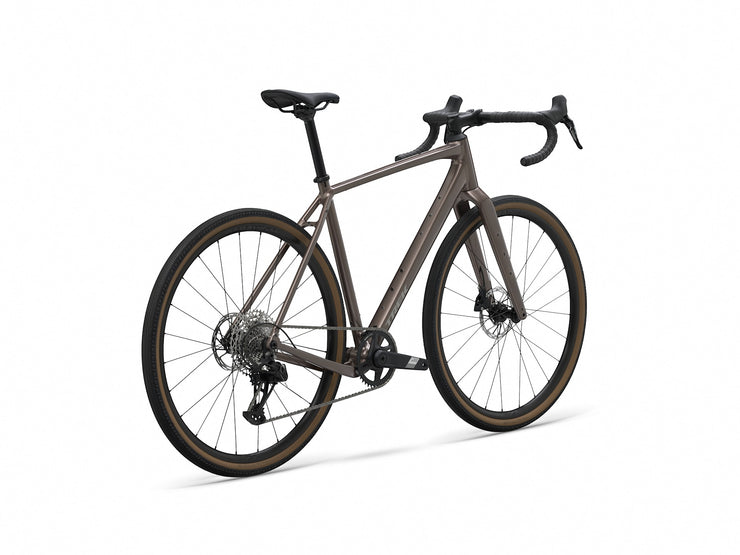

The Checkpoint ALR 5 is an aluminium gravel bike built for venturing anywhere. It pairs modern endurance geometry with a carbon fork for road-smoothing comfort, while 50 mm of tyre clearance gives you room for tons of grip. It comes equipped with SRAM Apex XPLR 12-speed shifting, hydraulic disc brakes, Tubeless Ready Bontrager Paradigm wheels and loads of mounts for bags and gear.
*Please note – spec applies to all sizes unless listed separately
- Frame
-
300 Series Alpha Aluminium, Internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm chamfered thru axle

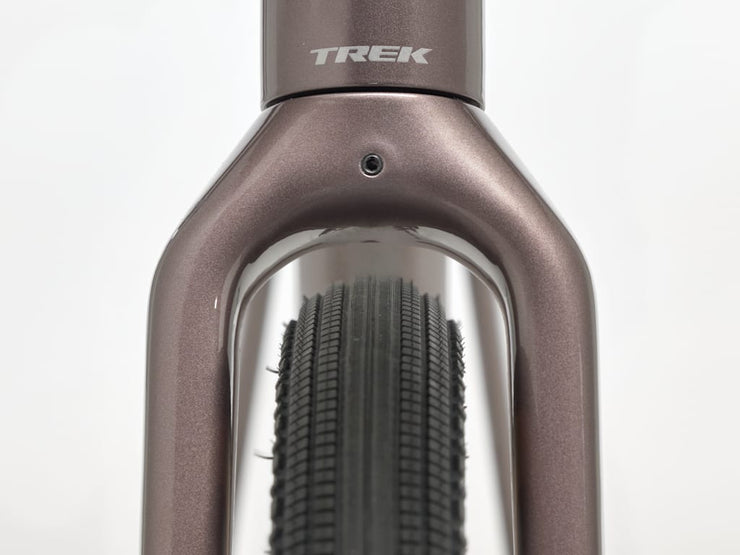

- Fork
- Weight
- ML – 9.87 kg/21.76 lb (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
- Shifter
-
SRAM Apex, 12 speed

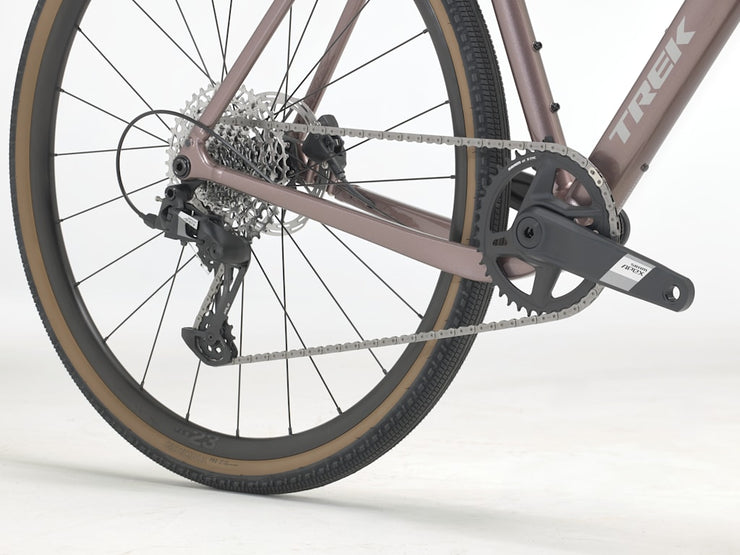

- Rear derailleur
-
SRAM Apex XPLR, 44T max cog
- *Crank
-
Size: XS, S
SRAM Apex 1, 40T, DUB Wide, 165 mm lengthSize: M, ML
SRAM Apex 1, 40T, DUB Wide, 170 mm lengthSize: L, XL
SRAM Apex 1, 40T, DUB Wide, 172.5 mm length - Bottom bracket
-
SRAM DUB Wide, T47 threaded, internal bearing
- Cassette
-
SRAM XPLR PG-1231, 11-44, 12-speed
- Chain
-
SRAM Apex, 12-speed
- Max. chainring size
- 1x:44 2x: 46/30
- Hub front
-
Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle
- Skewer front
-
- Hub rear
-
Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
- Skewer rear
-
- Rim
-
- Spokes
-
14 g stainless steel, black
- Tyre
-
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
- Tyre part
-
Bontrager TLR sealant, 180 ml/6 oz
- Max tyre size
- 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
- Saddle
-
- Seatpost
-
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

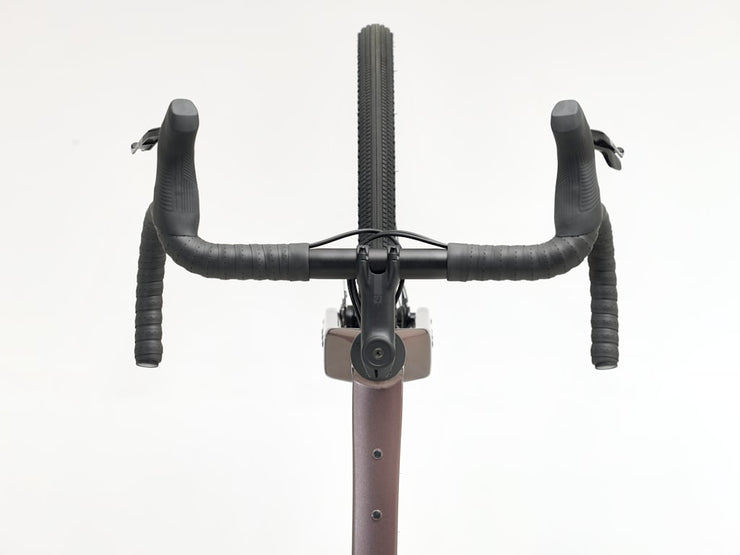

- *Handlebar
-
- Handlebar tape
-
Bontrager Supertack Perf tape
- *Stem
-
- Brake
-
SRAM Apex D1 hydraulic disc, flat mount
- Brake rotor
-
SRAM Paceline, rounded, CentreLock, 160 mm
- Brake lever
-
SRAM Apex, 12 speed
- Rotor size
- Max brake rotor sizes: 180 mm front and rear
