Product Details

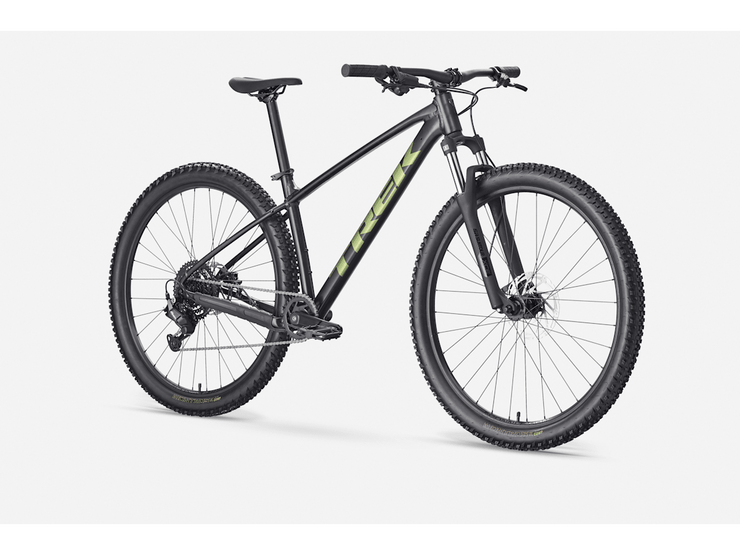

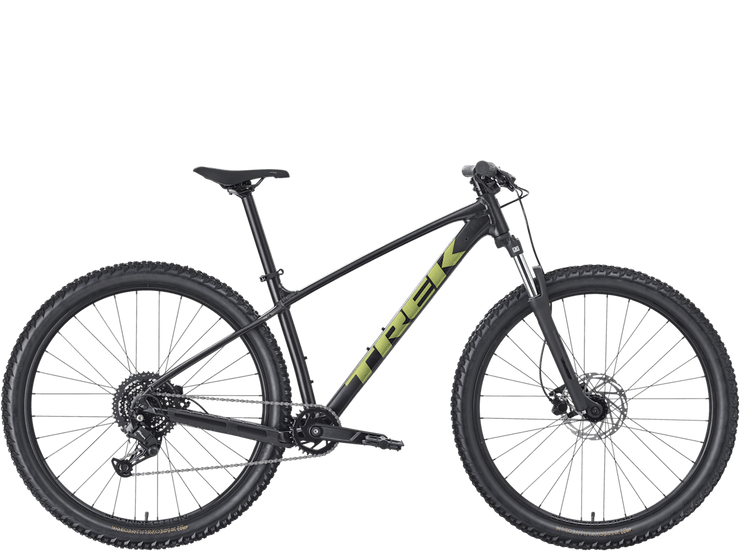

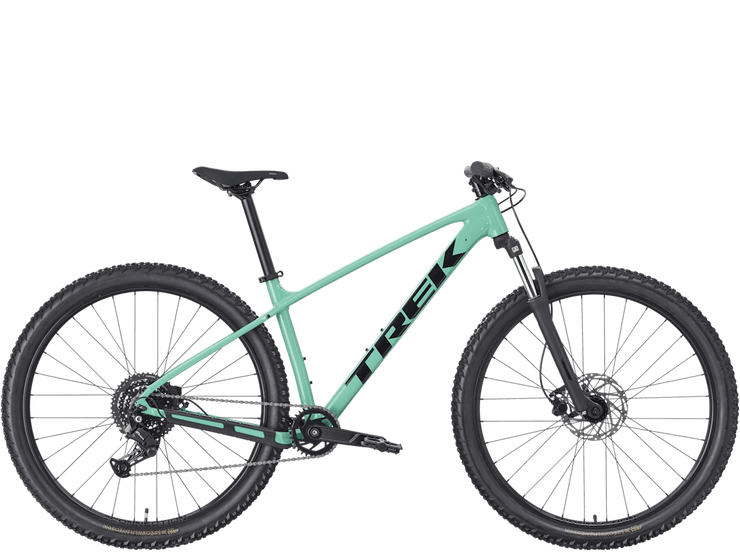

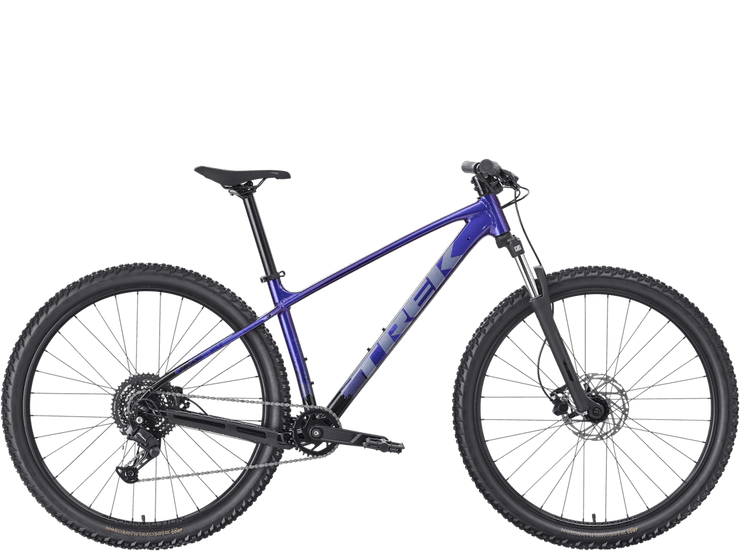

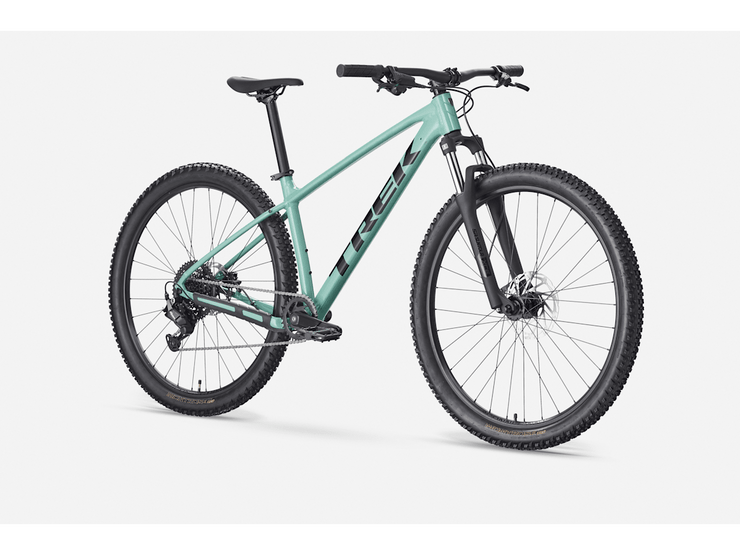

Marlin 4 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 8-speed Shimano ESSA shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
*Please note – spec applies to all sizes unless listed separately

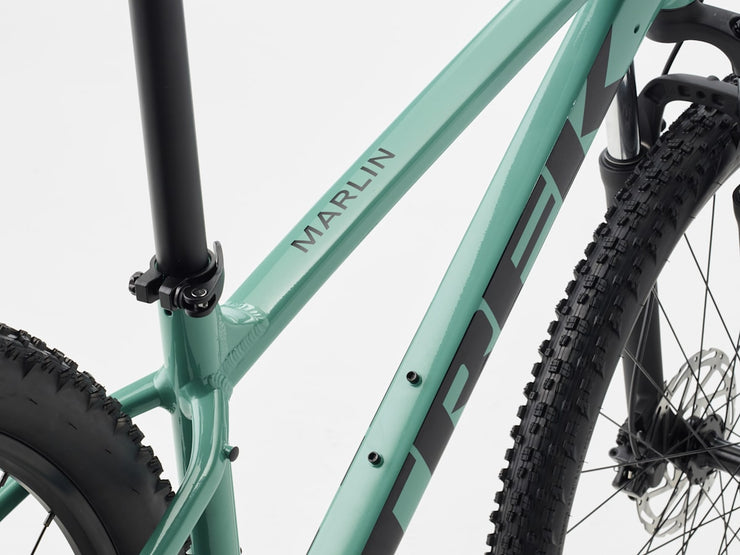

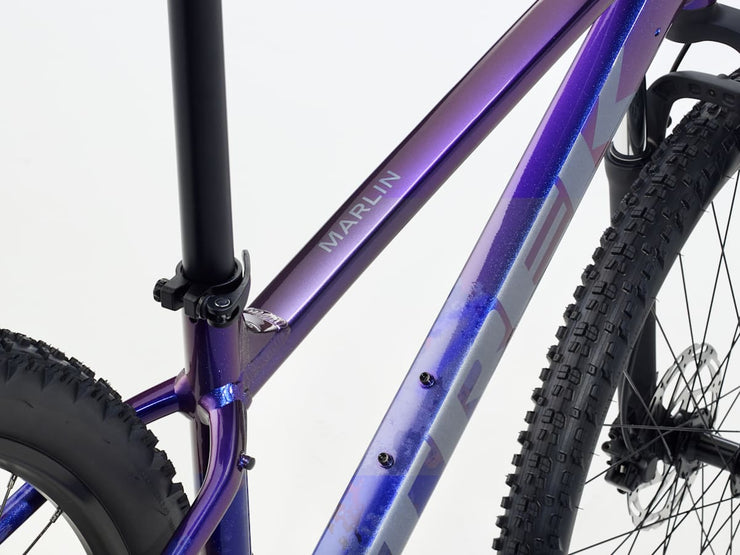

Frameset

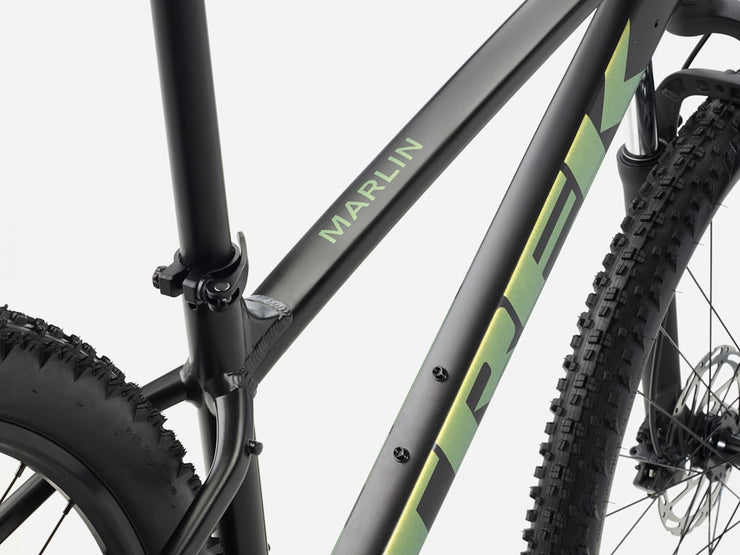

| *Frame |
Size: XS
Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
|
|---|---|
|
Size: ML , M , L , S , XL , XXL
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
|
|
| *Fork |
Size: XS
SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
|
|
Size: S
SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
|
|
|
Size: ML , M , L , XL , XXL
SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
|
Wheels
| *Front Hub |
Size: ML , M , XS , L , S , XL , XXL
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
|
|---|---|
| *Rear Hub |
Size: ML , M , XS , L , S , XL , XXL
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
|
| *Rear Skewer | Size: ML , M , XS , L , S , XL , XXL173x5 mm QR |
| *Rim |
Size: ML , M , XS , L , S , XL , XXL
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
|
| *Tire |
Size: XS , S
Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40"
|
|
Size: ML , M , L , XL , XXL
Bontrager Montrose comp, wire bead, 30 tpi, 29x2.40"
|

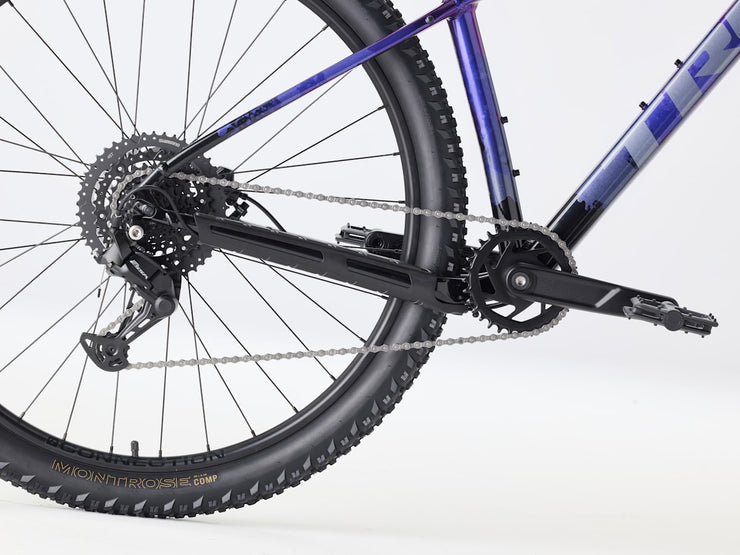

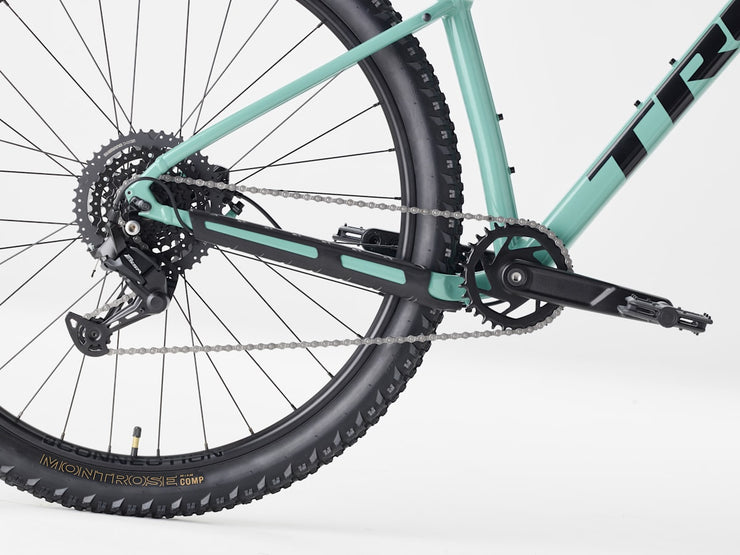

Drivetrain
| *Shifter |
Size: ML , M , XS , L , S , XL , XXL
Shimano M315, 8-speed
|
|---|---|
| *Rear Derailleur |
Size: ML , M , XS , L , S , XL , XXL
Shimano ESSA U2000
|
| *Crank |
Size: XS
ProWheel alloy, 32T narrow-wide steel ring, 160 mm length
|
|
Size: ML , M , S
ProWheel alloy, 32T narrow-wide steel ring, 170 mm length
|
|
|
Size: L , XL , XXL
ProWheel alloy, 32T narrow-wide steel ring, 175 mm length
|
|
| *Cassette |
Size: ML , M , XS , L , S , XL , XXL
Shimano HG300, 11-45, 8-speed
|
| *Chain |
Size: ML , M , XS , L , S , XL , XXL
KMC Z8.3, 8-speed
|
| *Pedal |
Size: ML , M , XS , L , S , XL , XXL
Nylon platform
|
Components
| *Saddle | Size: ML , M , XS , L , S , XL , XXLBontrager Verse Short, stainless steel rails |
|---|---|
| *Seatpost |
Size: M , XS , S
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
|
|
Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
|
|

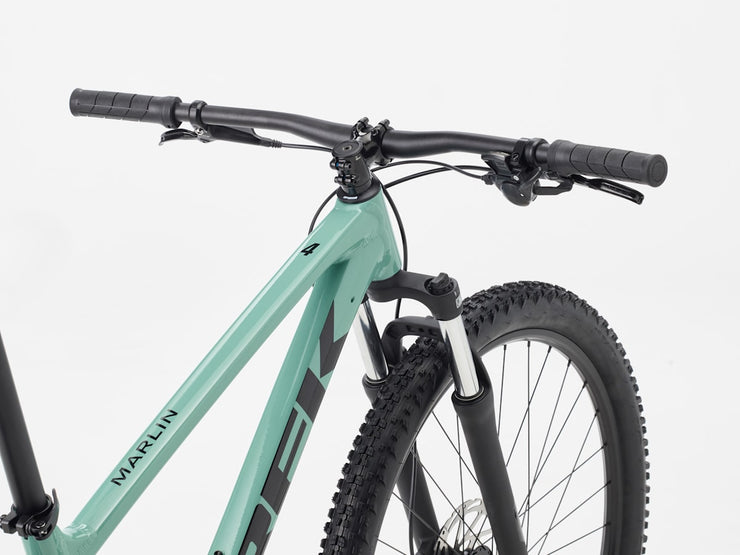

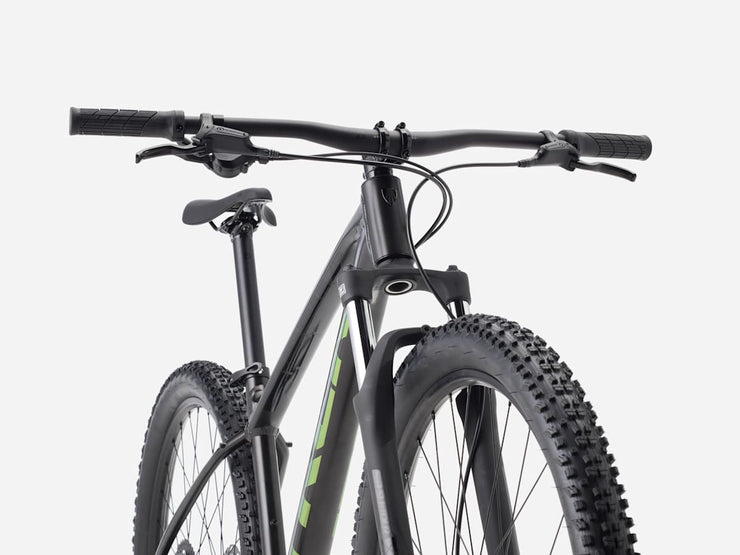

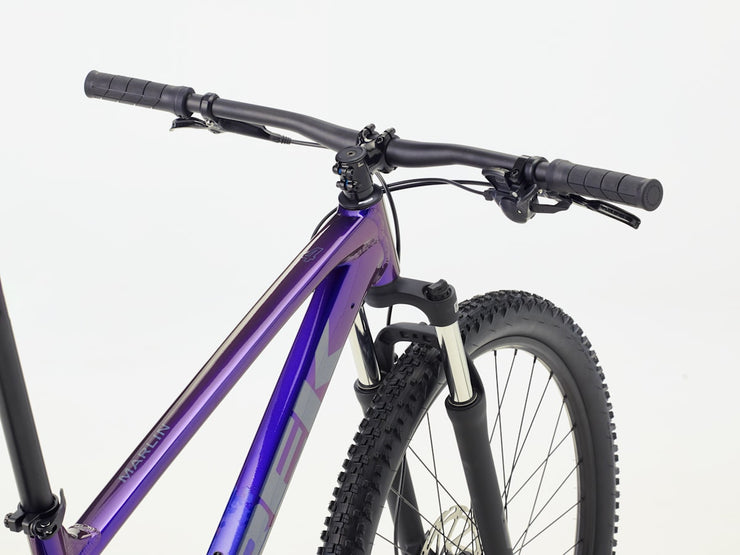

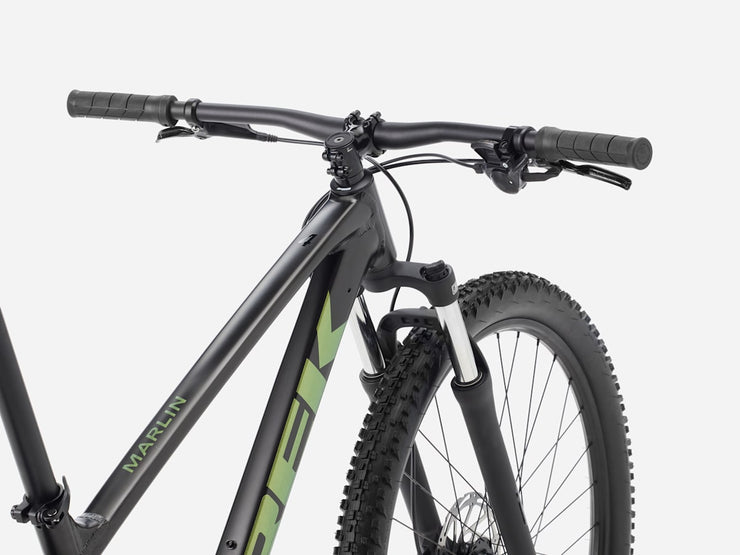

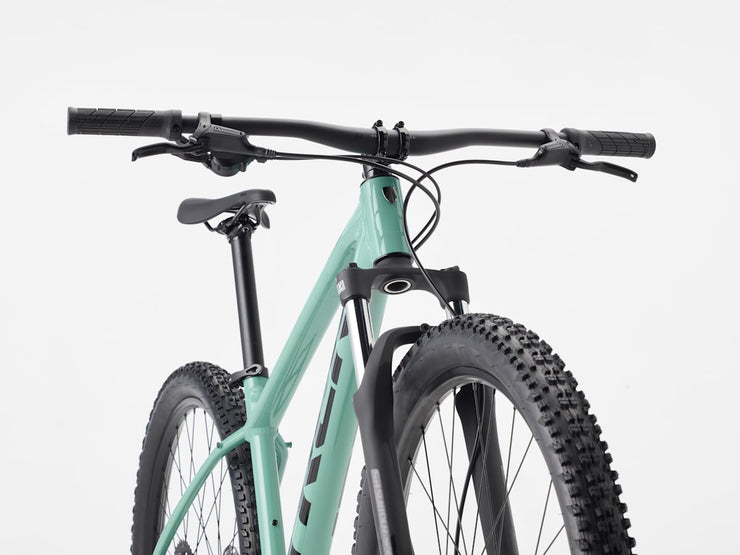

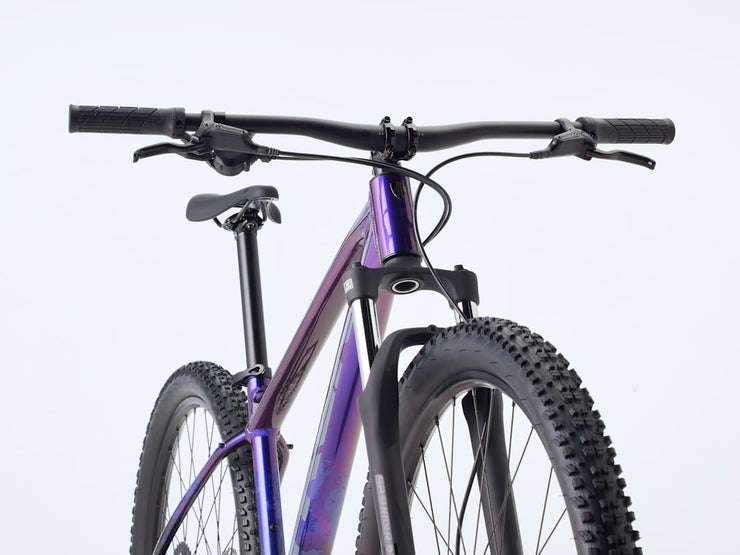

| *Handlebar |
Size: XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
|
|
Size: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
|
|
|
Size: ML , M , L , XL , XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
|
|
| *Grips | Size: ML , M , XS , L , S , XL , XXLTrek Line Comp, nylon lock-on |
| *Stem |
Size: XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
|
| Size: ML , M , LBontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length | |
| Size: XLBontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length | |
| Size: XXLBontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length | |
| *Headset |
Size: ML , M , XS , L , S , XL , XXL
Semi-integrated, 1-1/8''
|
| *Brake |
Size: XS , S
Tektro HD-M276 hydraulic disc
|
|
Size: ML , M , L , XL , XXL
Tektro HD-M275 hydraulic disc
|
|
| *Brake Rotor |
Size: ML , M , XS , L , S , XL , XXL
Tektro, 6-bolt, 160mm
|
|
Size: ML , M , L , XL , XXL
Tektro, 6-bolt, 180mm
|
Weight
| Weight | M - 14.90 kg / 32.85 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
