Product Details

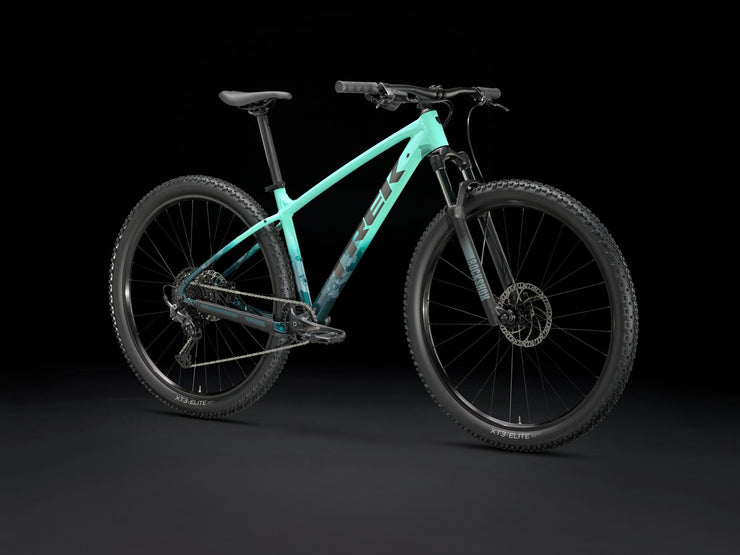

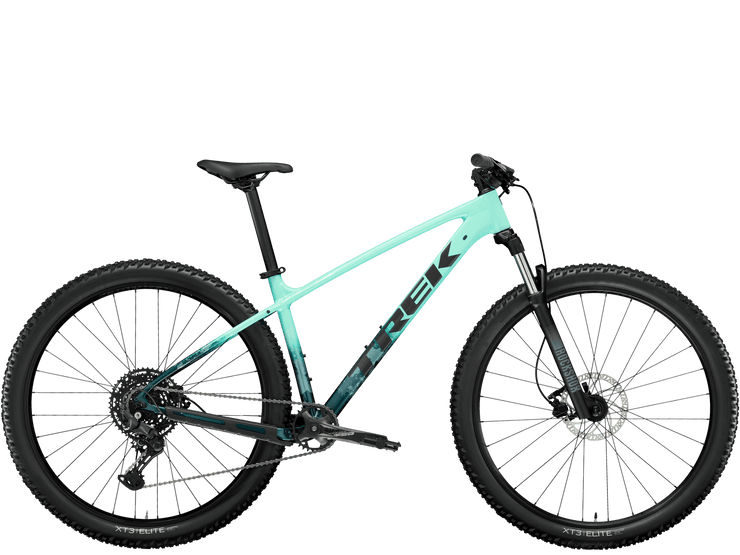

The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the upgraded suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.
*Please note – spec applies to all sizes unless listed separately
Frameset
| *Frame |

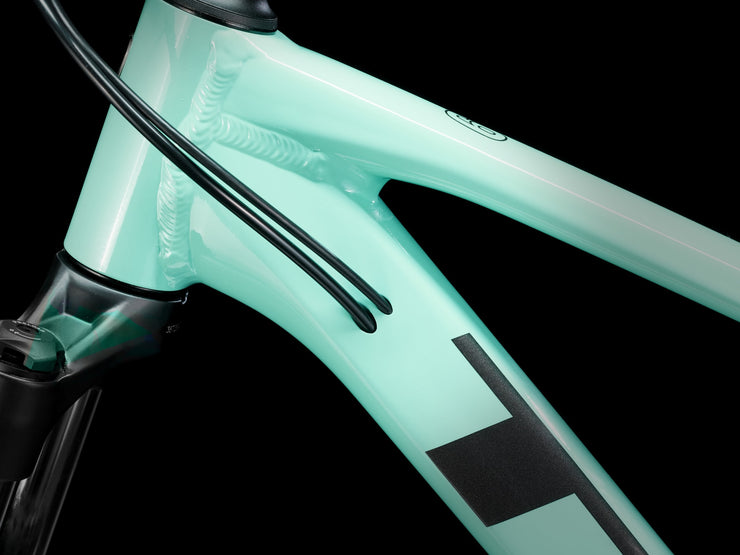

Size: XXS , XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|---|---|
|
Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|
| *Fork |

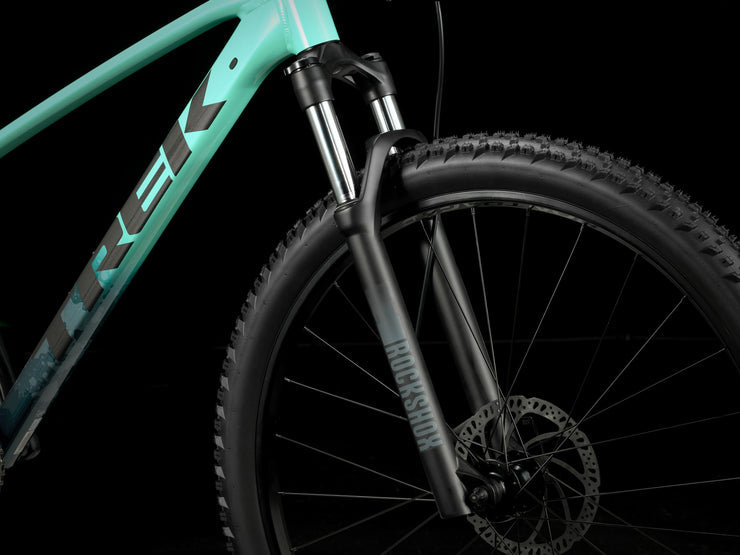

Size: XXS RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel |
|
Size: XS , S RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
|
|
Size: M , ML , L , XL , XXL RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
|
| Max compatible fork travel | 120mm, XXS: 80mm |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 173x5 mm QR |
| Rim | Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
| *Tyre |

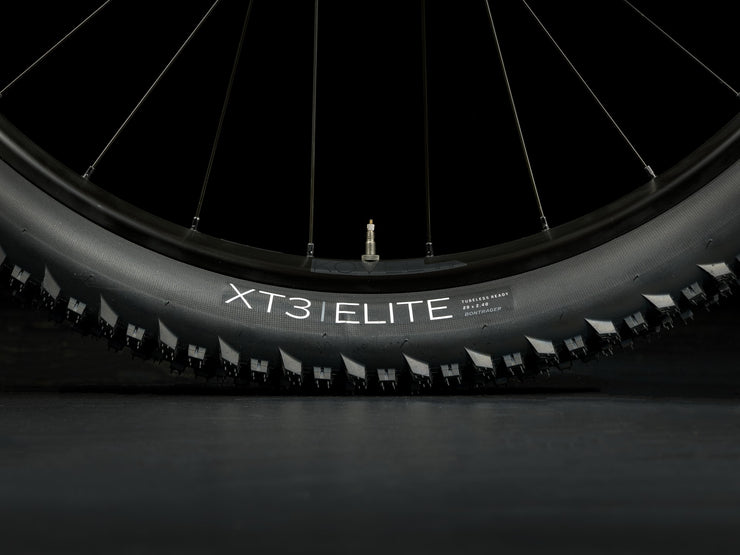

Size: XXS Bontrager XT3 Elite, Tubeless Ready, Inner Strength casing, wire bead, 60 tpi, 26x2.35" |
|
Size: XS , S Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.35" |
|
|
Size: XS , S Maxxis IKON, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.35'' |
|
|
Size: M , ML , L , XL , XXL Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.35" |
|
|
Size: M , ML , L , XL , XXL Maxxis IKON, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.35'' |
|
| Max tyre size | Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
Drivetrain
| Shifter | Shimano U6000, 10-speed |
|---|---|

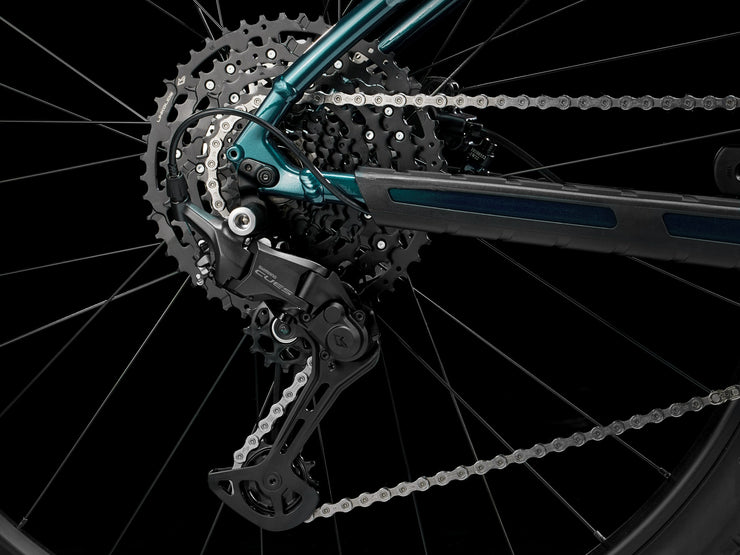

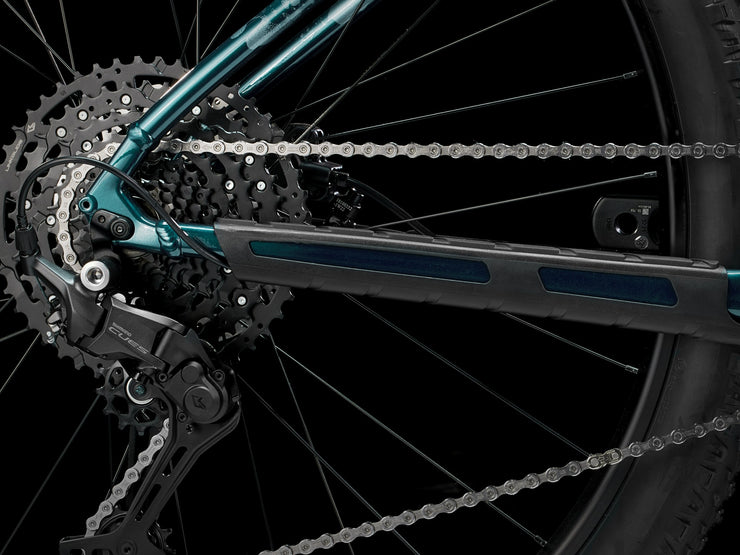

| Rear derailleur | Shimano CUES U6000 GS |
| *Crank |

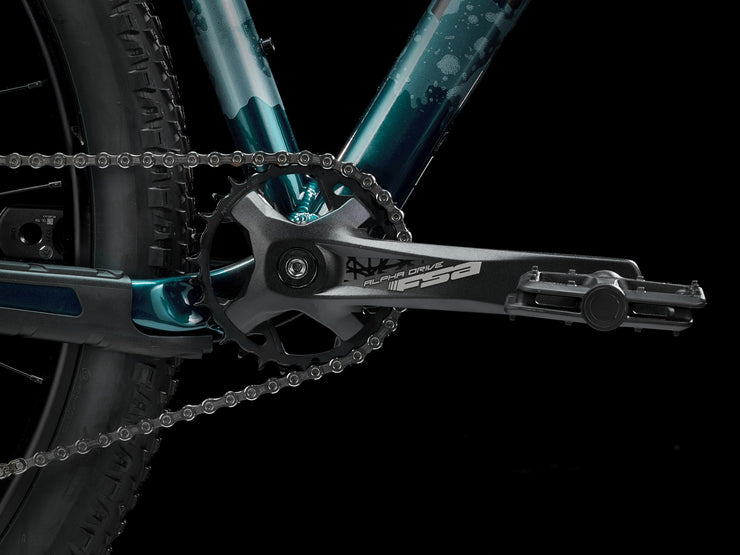

Size: XXS , XS FSA Alpha Drive, 30T, 160 mm length |
|
Size: S , M , ML FSA Alpha Drive, 30T, 170 mm length |
|
|
Size: L , XL , XXL FSA Alpha Drive, 30T, 175 mm length |
|
| Bottom bracket | FSA, 73 mm, threaded cartridge, 122.5 mm spindle |
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
| Chain | Shimano LG500 |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: See FAQ, 2x: 36T, 3x: 42T |
Components
| Saddle | Bontrager Verse Short, stainless steel rails |
|---|---|
| *Seatpost |
Size: XXS Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length |
|
Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|
|
Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| *Handlebar |
Size: XXS , XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
|
Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
|
|
Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem |
Size: XXS , XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
|
Size: M , ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
|
|
Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length |
|
|
Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
| Head set | Semi-integrated, 1-1/8" |

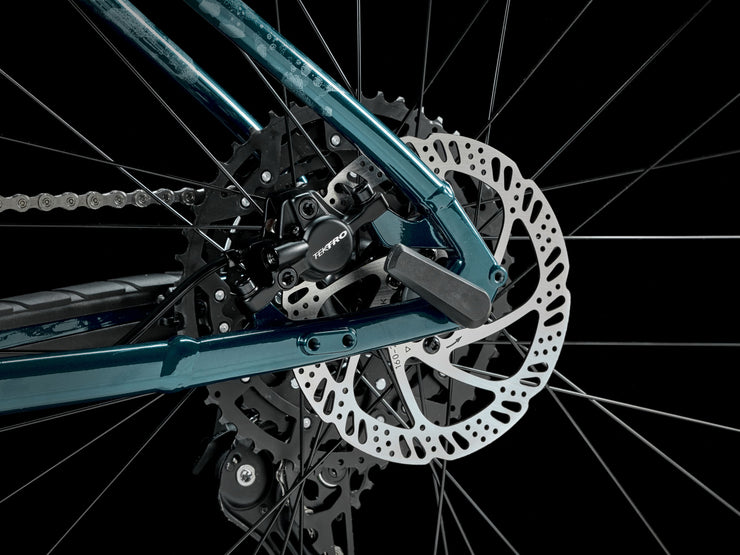

| Brake rotor | Tektro, 6-bolt, 160mm |
| *Brake Set |
Size: XXS , XS , S Tektro HD-M276 hydraulic disc, short reach |
|
Size: M , ML , L , XL , XXL Tektro HD-M275 hydraulic disc |
|
| Rotor size | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
Weight
| Weight | M - 14.50 kg / 31.97 lbs (with tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
